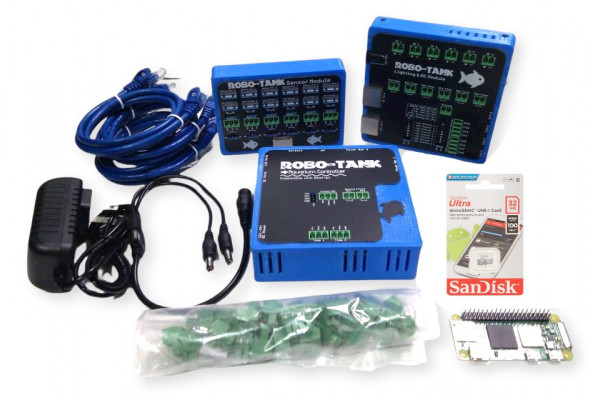

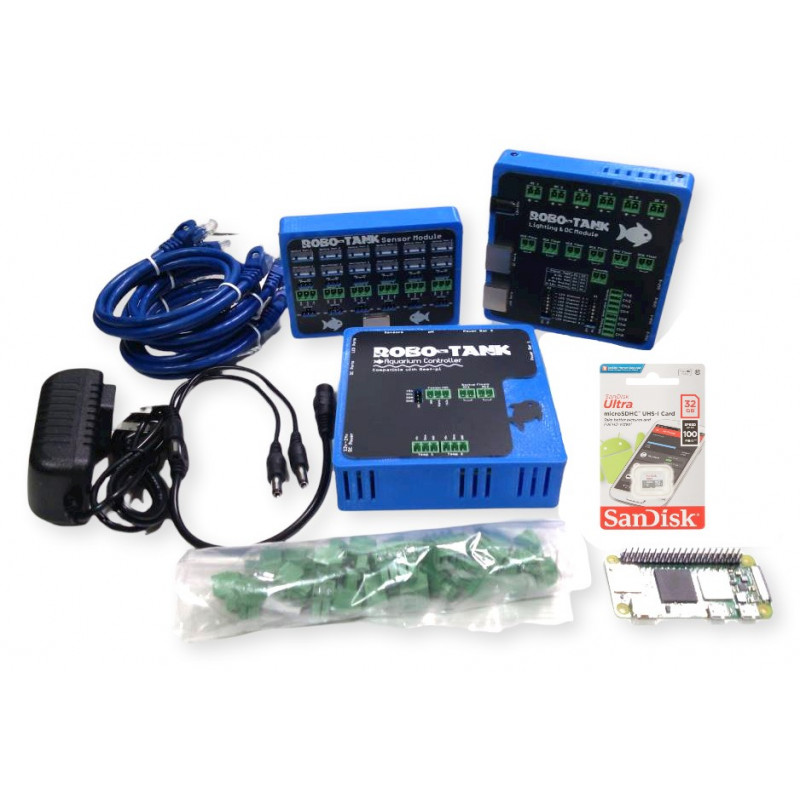

This package contains everything you need to get Robo-Tank up and running, simply add your probes, sensors and equipment.
This kit is packaged with a Raspberry Pi Zero 2 W, I've soldered the header pins to the board so it's plug and play. This is a perfect fit for the controller with the only downside being it doesn't have a hardwire Ethernet connection for the internet, only WiFi. It is possible to plug in a $20 micro USB to Ethernet adapter if you prefer a hardwire network connection.
Although this is plug and play you still need to load reef-pi on the Raspberry Pi and plug it into the controller. The controller board will be mounted in the case, you just need to remove the lid and the Raspberry Pi plugs in. Here's a manual showing how to do that and one to setup the Raspberry Pi.
The controller has a fully isolated pH circuit built in, simply plug in any pH probe with a BNC connector and you're ready to accurately monitor your pH.
- Deluxe controller installed in 3D printed case
- Face plate installed on case

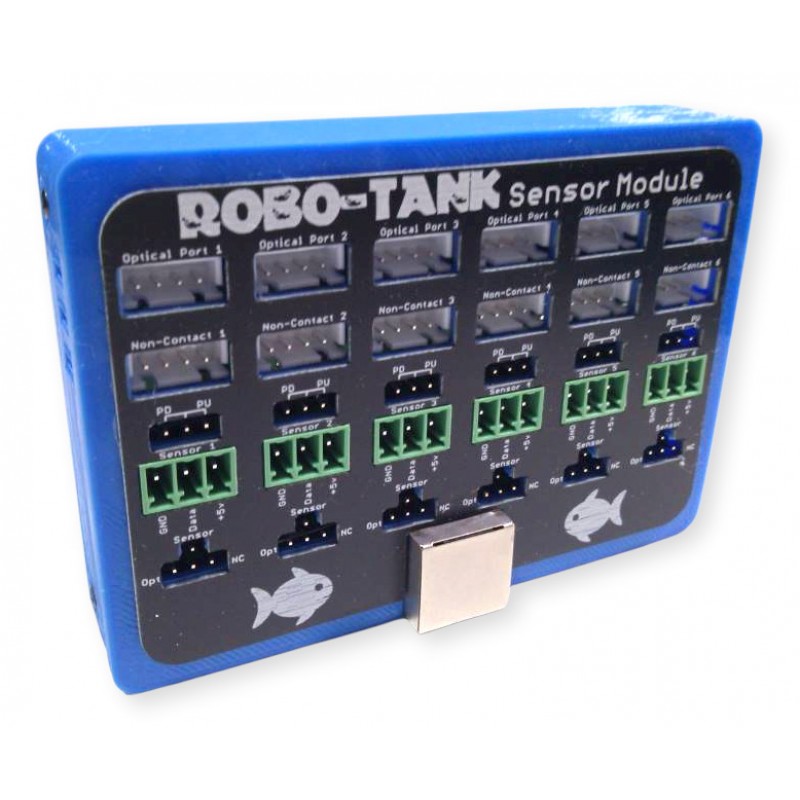

- Sensor extension board installed in 3D printed case
- Raspberry Pi Zero 2 W with header soldered, plug and play compatible.
- Samsung 32gb Pro Endurance microSD card
- 12v - 2amp AC Adapter
- 3ft Ethernet cable for sensor extension
- 21 2-4 pin pluggable screw terminal connectors
- CR1220 battery (Canada and USA only) International orders need to supply your own.
If you want to monitor pH you need a probe - EXAMPLE
3D Printed Case
The controller comes in a 3D printed case, choose your choice of color on the right side and select which Raspberry Pi you'll be using as the case is custom to it. There many be small defects due to 3D printing but any will be minor and only have a visual effect.
Ports, Ports and more Ports
There are a total of 40 ports, as the board comes you can connect any any combination of the following up to a count of 40.
- Up to 24 relays for AC outlets
- Up to 7 DC powered devices (12v-24v depending on power supply)
- Up to 22 digital sensors
- Up to 8 5v/10 PWM or Analog ports
- DS18B20 temperature sensors
- Up to 4 pH circuits
This is how I've allocated the ports using specific connectors to make connections easy. The above list reflects what can actually connect to these ports, these are only labels. For example, after 16 relays you would use some 5v PWM ports or use some relay ports for more digital sensors.
- 16 Relays for AC Outlets - two DB9 serial sockets

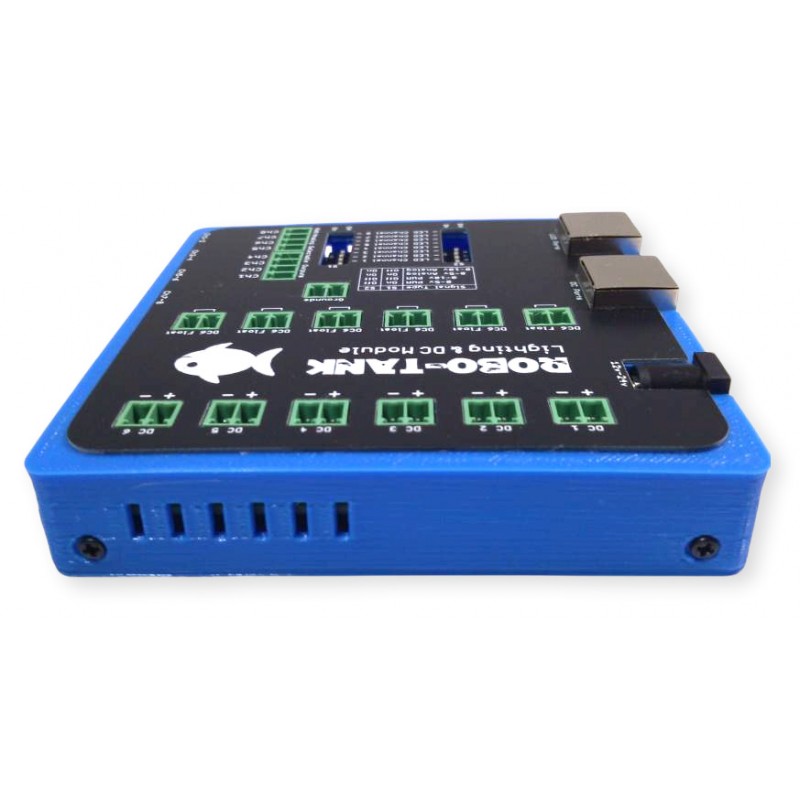

- 6 Heavy Duty DC Ports - each port has a 2 pin pluggable screw terminal connector
- 1 Auto Feeder Port (standard DC) - uses a 3 pin pluggable screw terminal connector
- 3 Emergency Backup Float Switch Ports for DC Port - uses a 2 pin pluggable screw terminal connector
- 2 Emergency Backup Float Switch Ports for AC Outlet - uses a 2 pin pluggable screw terminal connector
- 3 Digital Sensor Ports - each port has a 3 pin pluggable screw terminal connector
- 3 Digital Sensor Ports - xH-4 connector (what comes installed on the sensor)

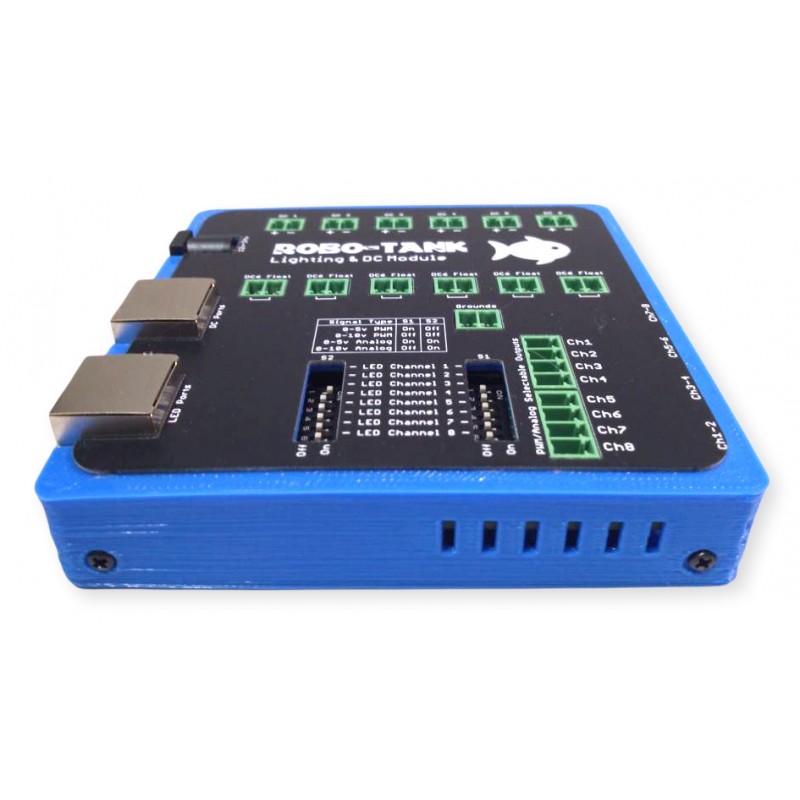

- 8 Configurable 5v/10v PWM or Analog Ports - uses two 4 pin pluggable screw terminal connectors
- 2 DS18B20 Temperature Ports - uses a 3 pin pluggable screw terminal connector
Reef-pi Deluxe Aquarium Controller - Complete Kit
- Product Code: PPFullDeluxe
- Availability: In Stock
- $199.95 USD
|DS18B20 Waterproof Digital Temperature Sensor Probe 3 meter cable||+ $7.95 USD|
|Optical Water Level Sensor||+ $8.95 USD|
|Reversible Float Switch||+ $2.95 USD|
|XKC-Y25-V Non-Contact Water Sensor||+ $13.49 USD|
