Robo-Tank Aquarium Controller Web App
Flexibility and ease of use for all your freshwater and reef tanks
Managing an aquarium has never been easier or more efficient than with the Robo-Tank web app. Designed for both beginners and seasoned aquarists, this powerful aquarium controller simplifies every aspect of aquarium control. Whether you're scheduling dosing, monitoring temperature, tracking water flow, conductivity, or setting up custom rules, Robo-Tank offers a comprehensive, all-in-one solution that adapts to your unique needs.
The app’s intuitive design allows your aquarium controller to automate tasks like water changes and top-offs, fine-tune settings like pH and dosing stirrers. With features like automatic updates, detailed logging, custom charts, and email alerts, Robo-Tank provides you with complete visibility and control over your aquarium at all times. As it continues to evolve, Robo-Tank is committed to ongoing development, adding new features and refining the user experience based on valuable feedback, ensuring your aquarium remains effortlessly optimized.

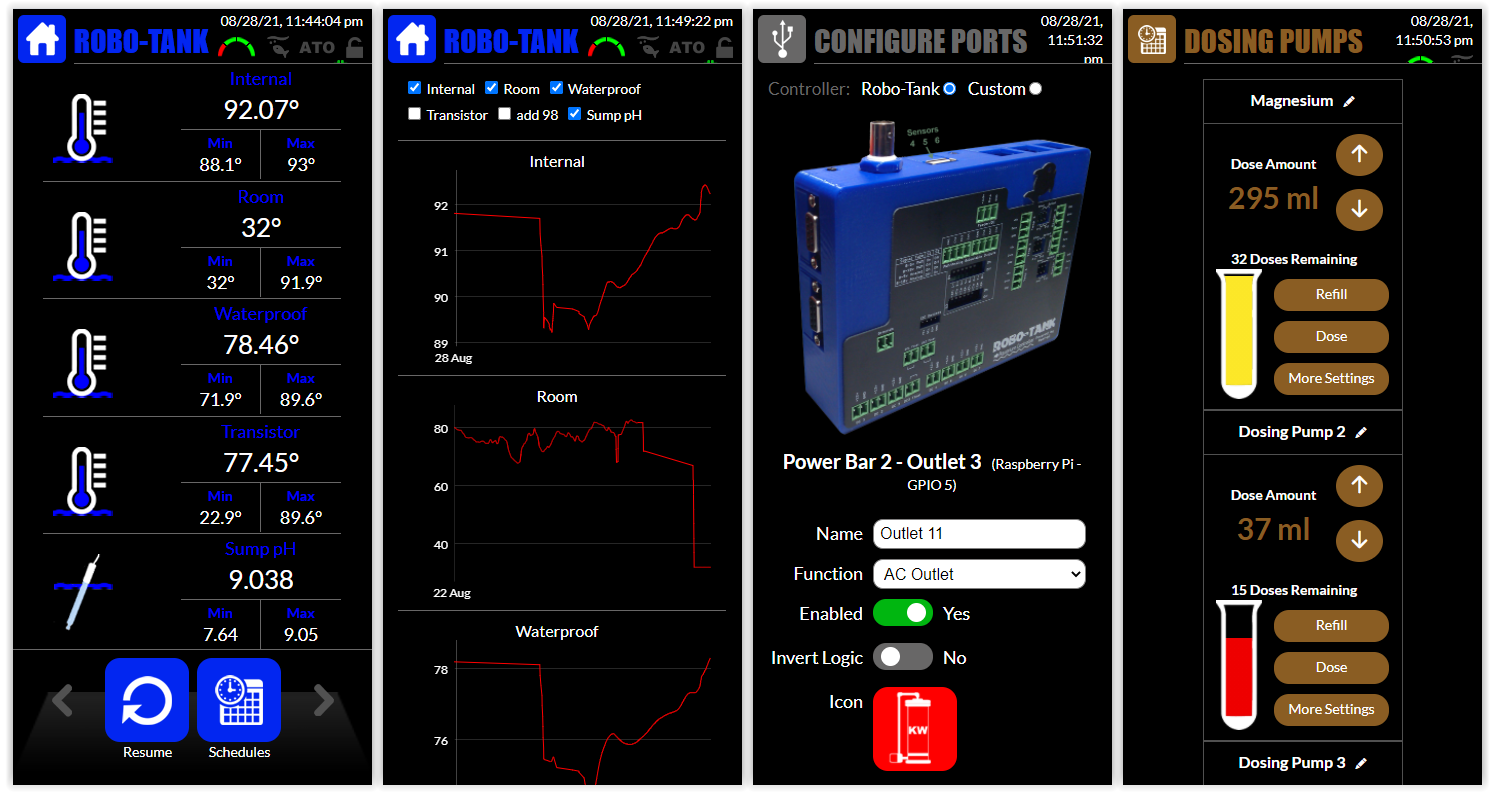

Dashboard

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51


Features

System

  • Real-Time Automation for your aquarium controller
  • Real-Time clock with battery backup
  • Works with Raspberry Pi Zero 2, Pi 3, Pi 4
  • Uses 4 threads for C++ backend program
  • Access from computer, laptop, phone, tablet, TV, and HDMI

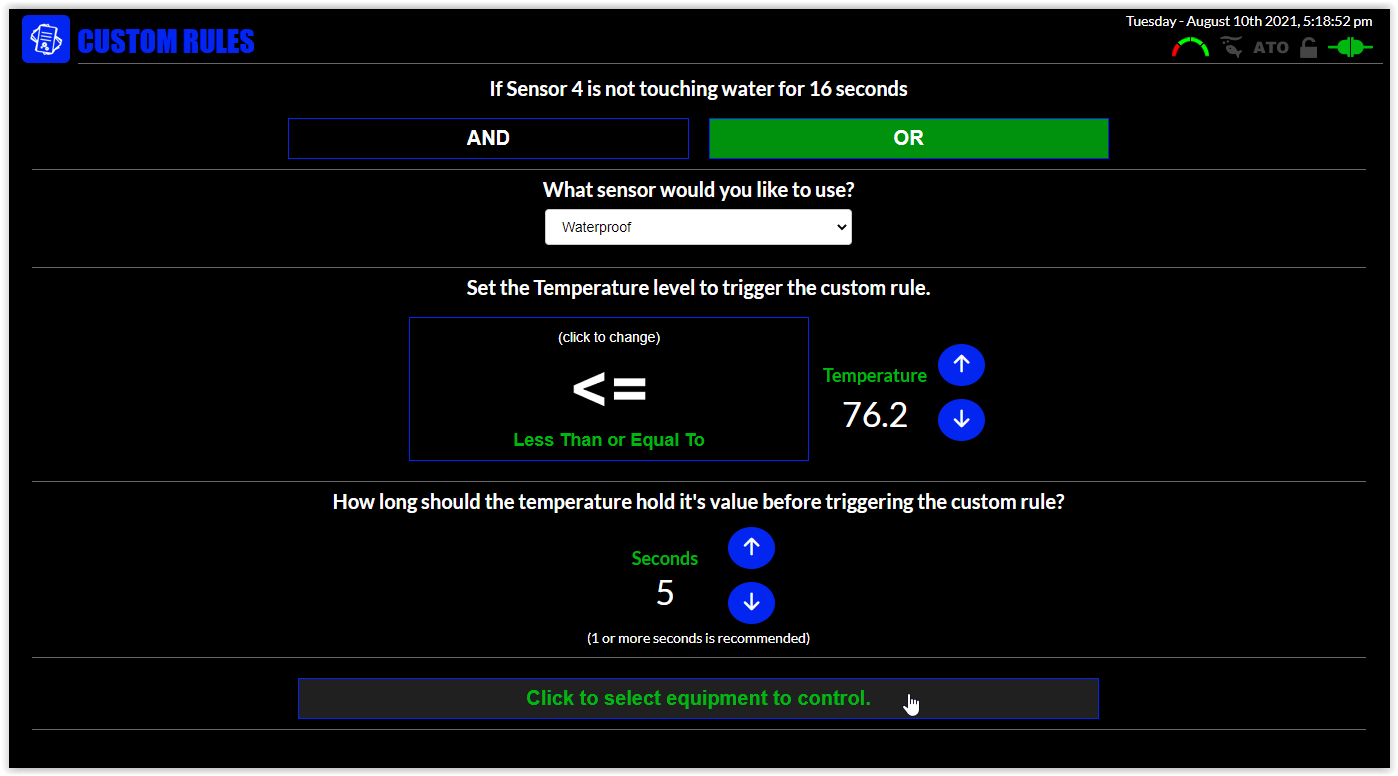

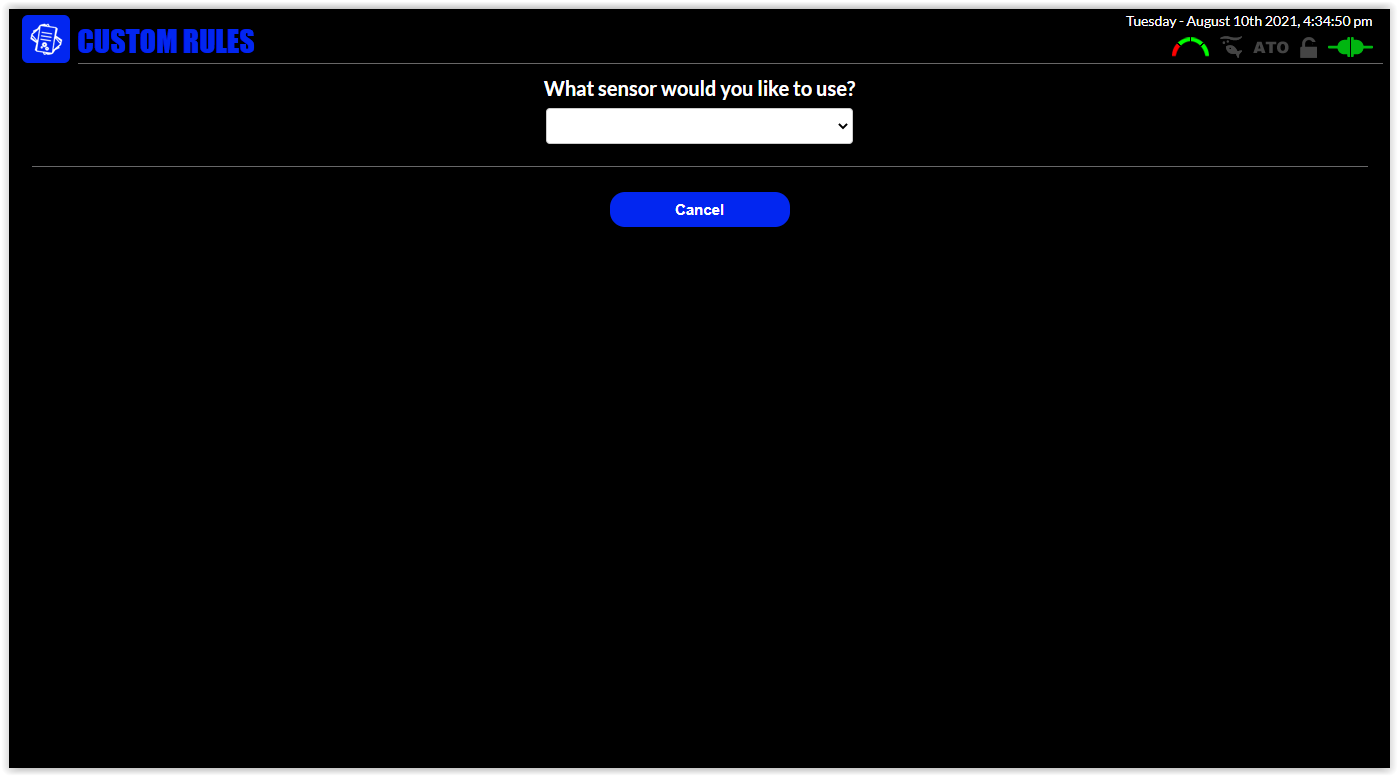

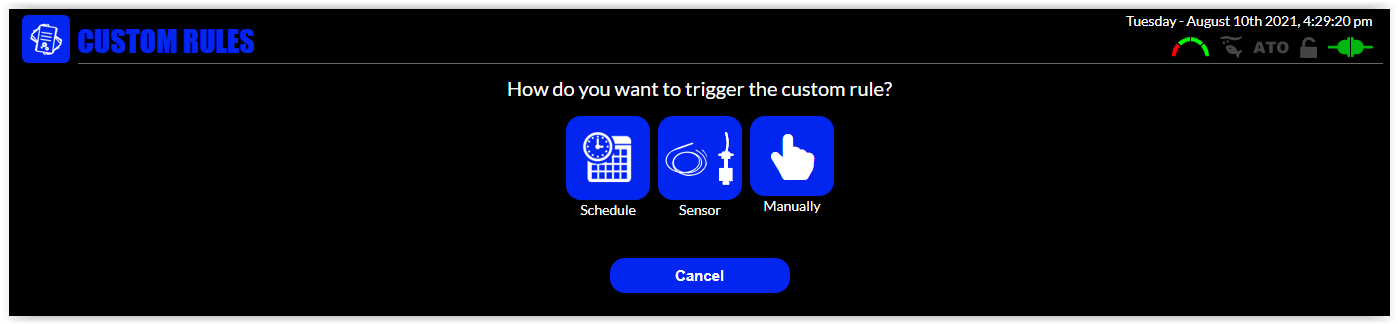

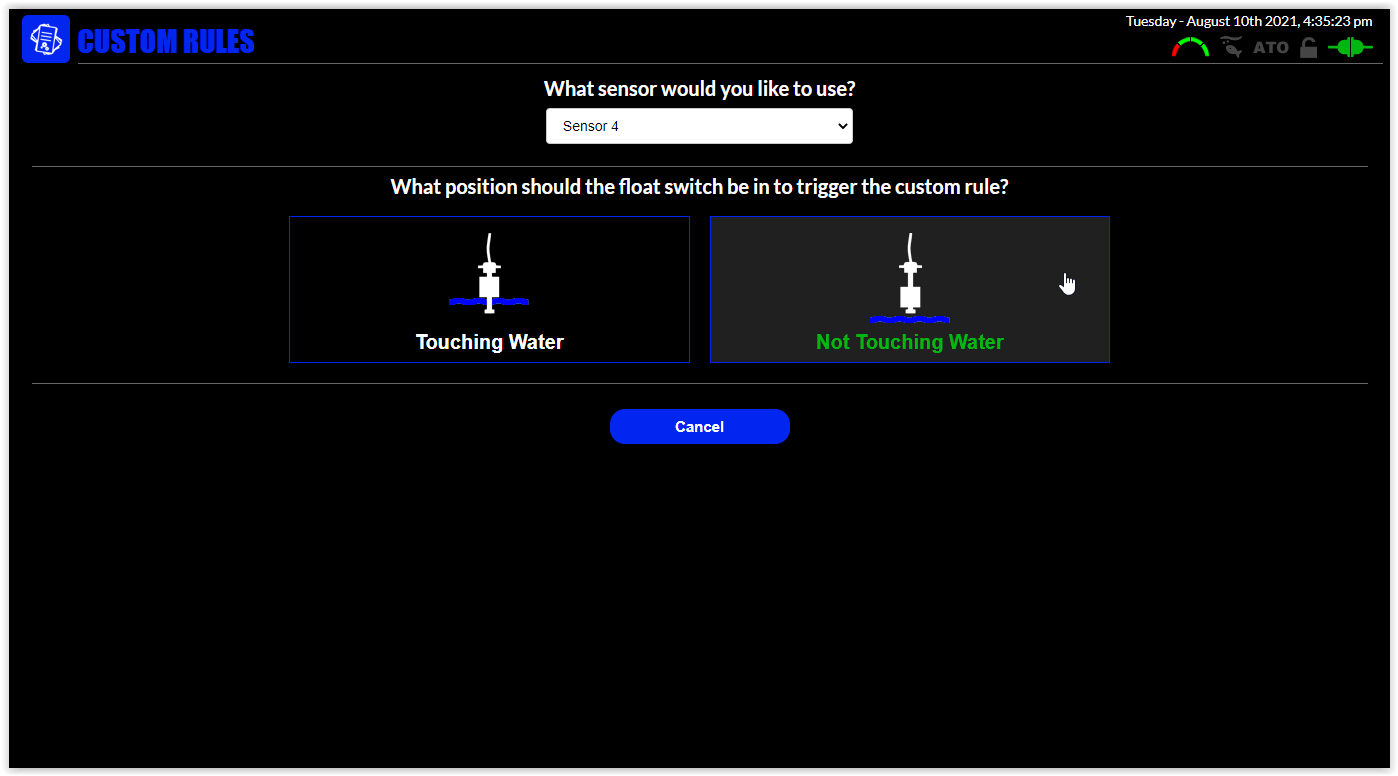

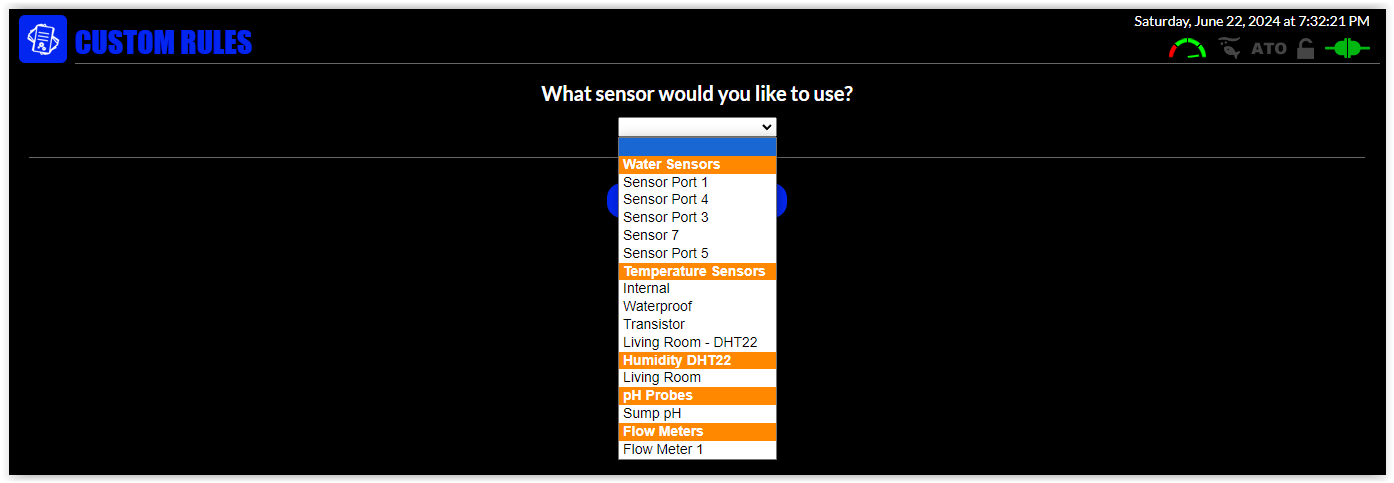

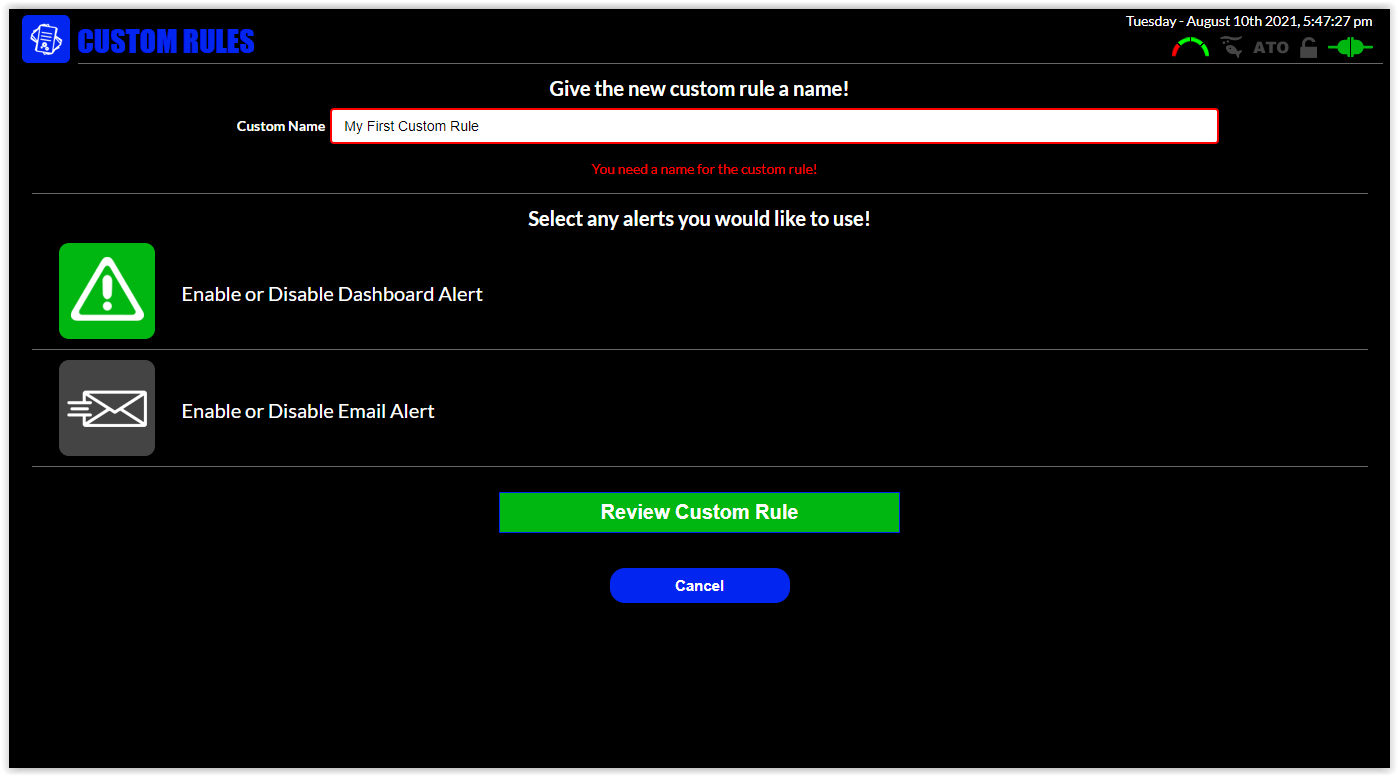

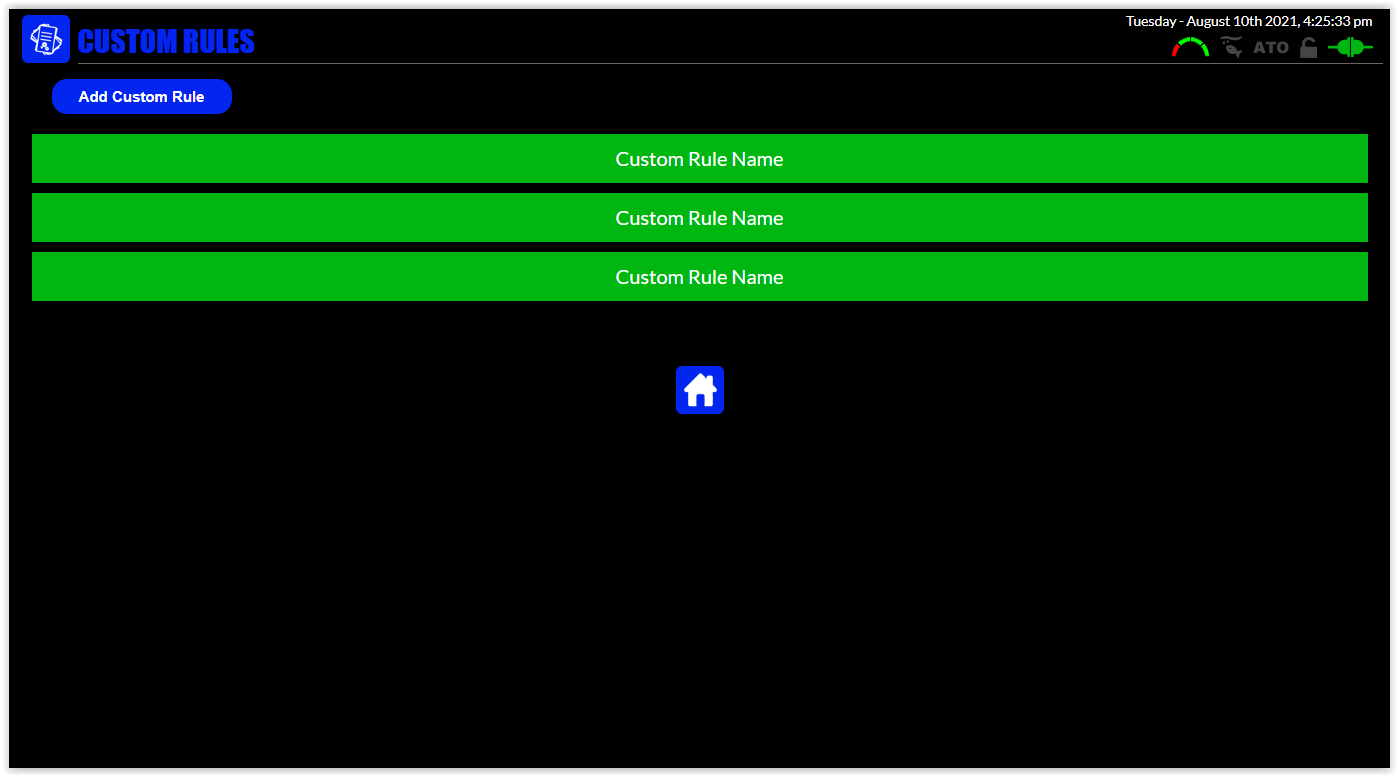

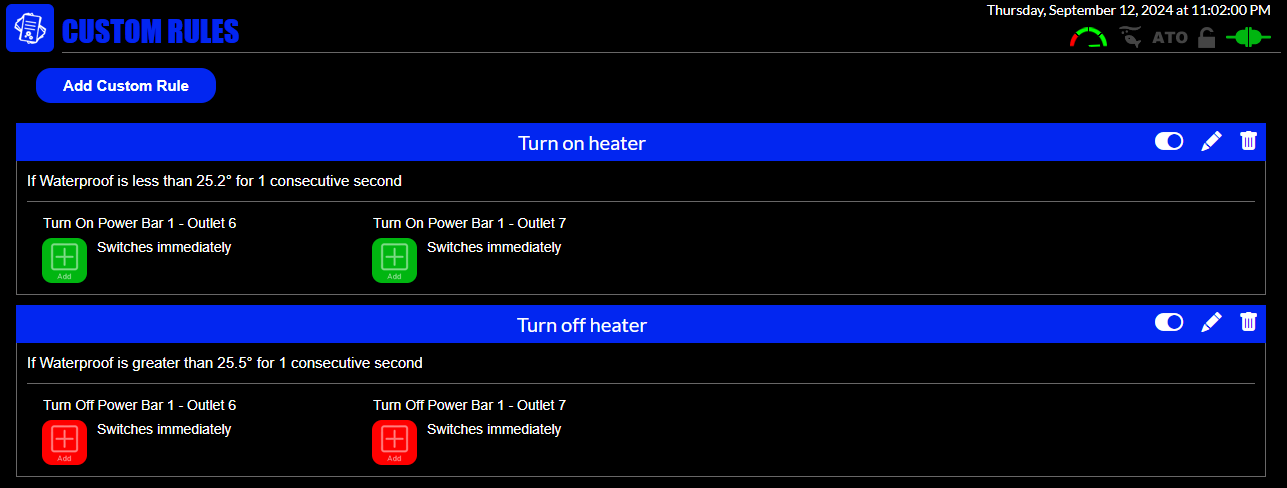

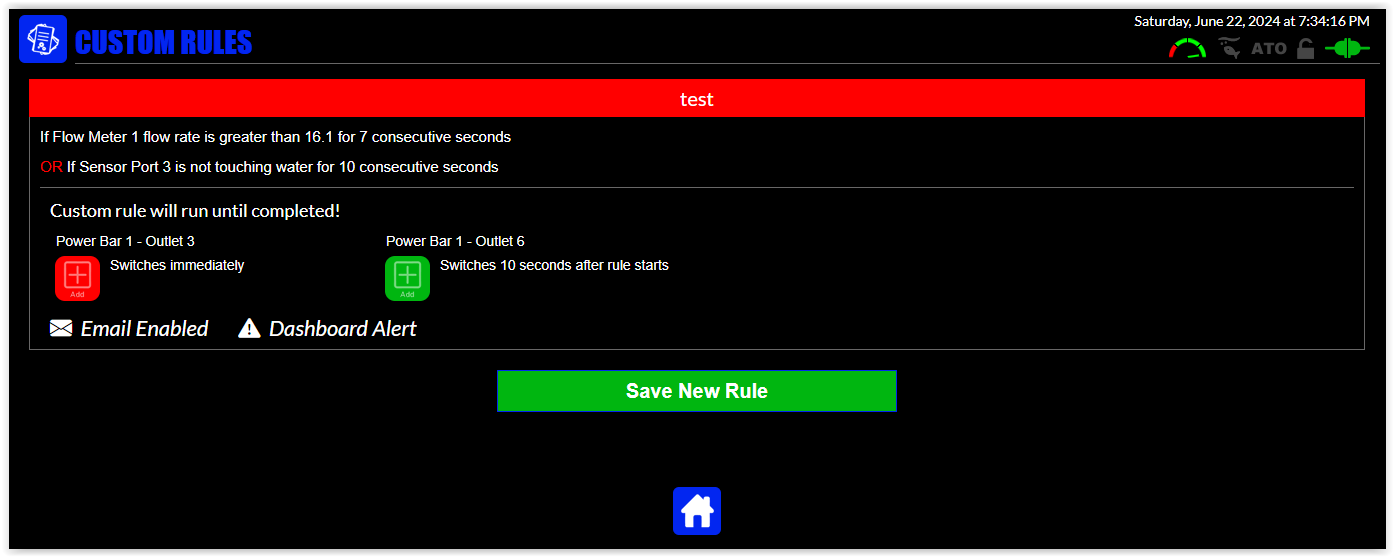

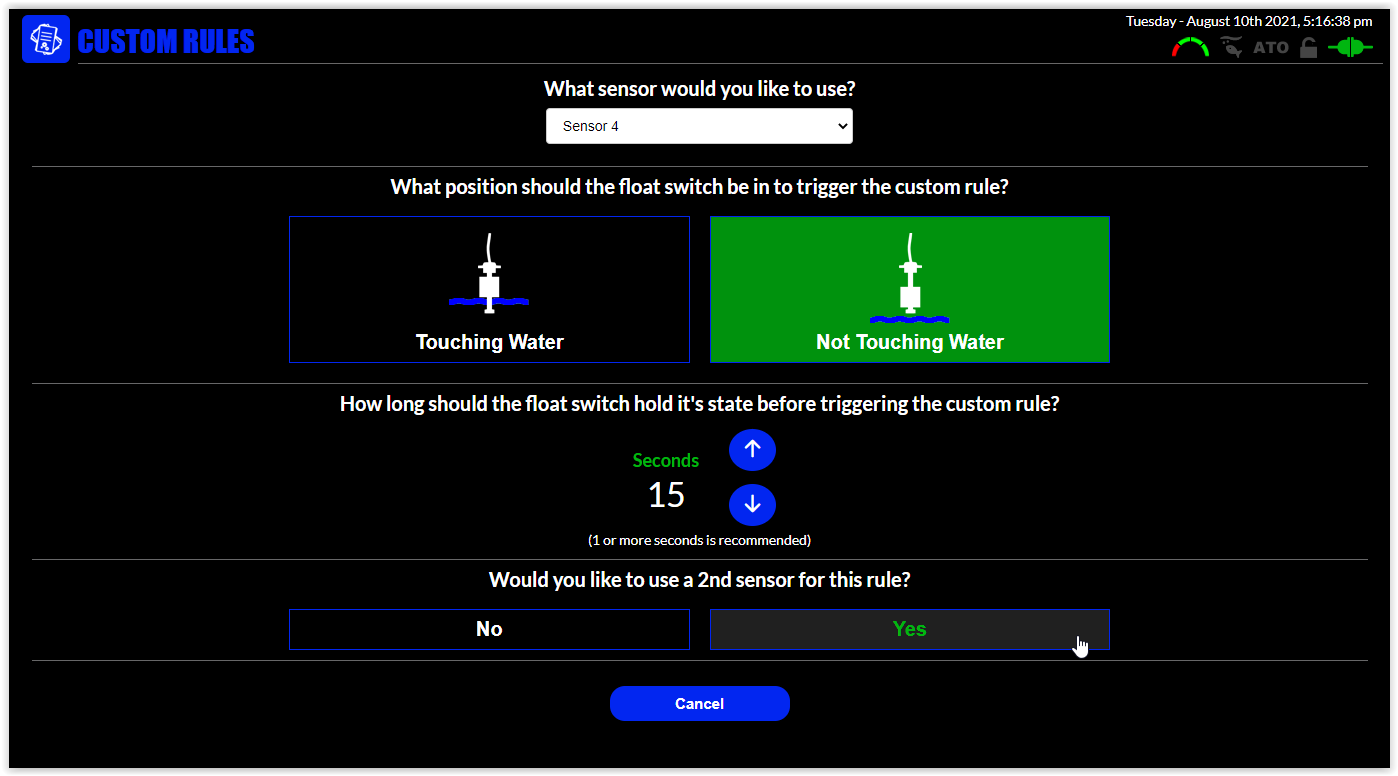

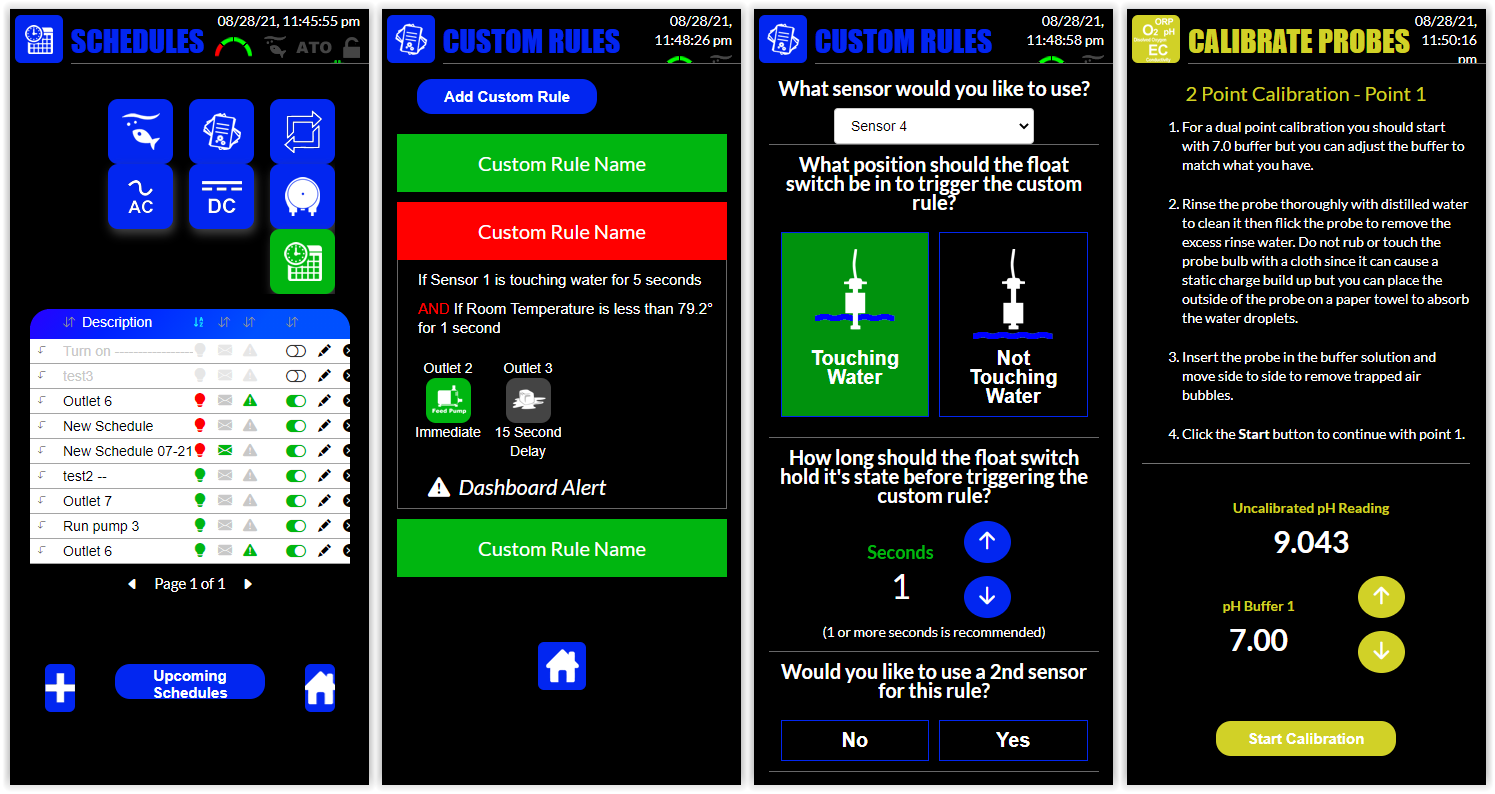

Custom Rules

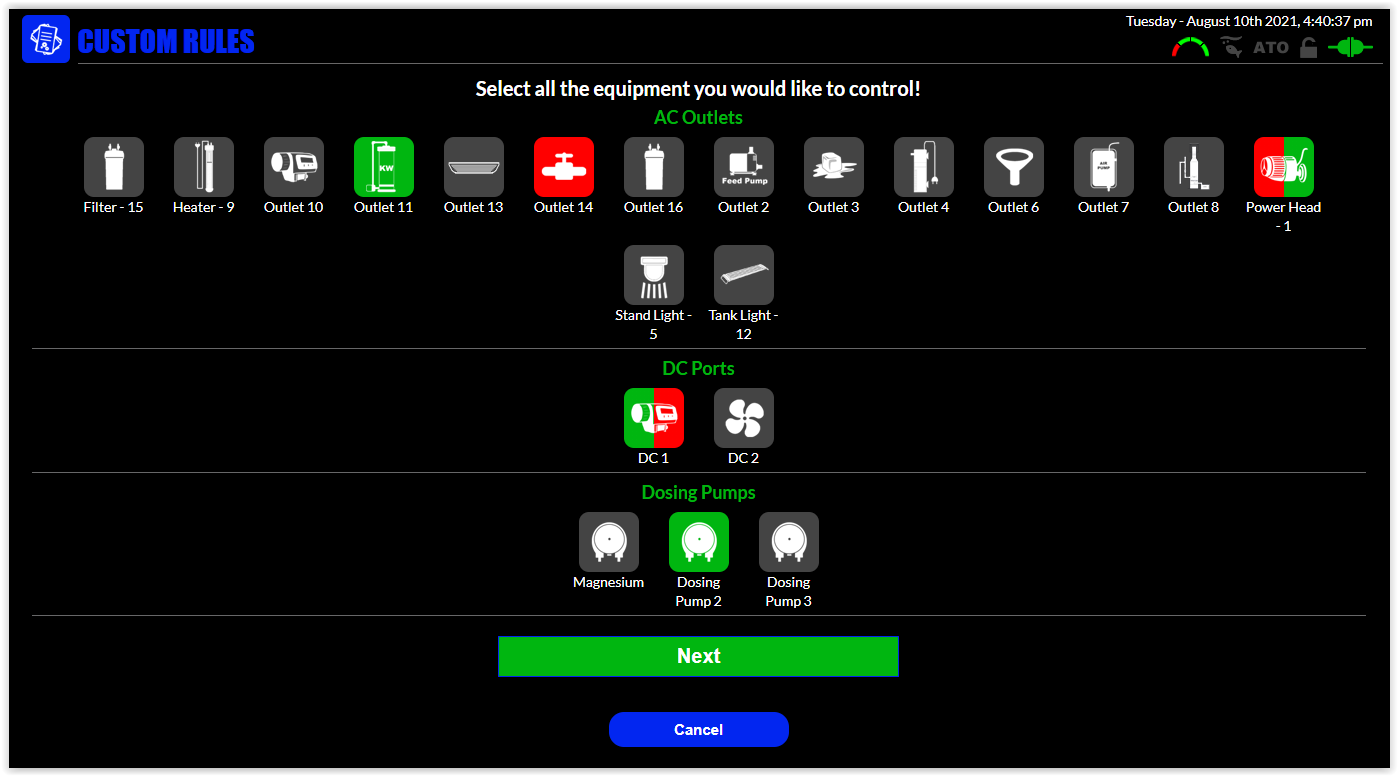

  • Control AC outlets, DC ports and Dosing Pumps using any sensor value
  • Actions based on two sensors using AND OR conditions allowing backup sensors
  • Actions based on two sensors can be different types of sensors
  • Add sensor delay before it triggers the custom rule
  • Switch port on, on/off, off, off/on

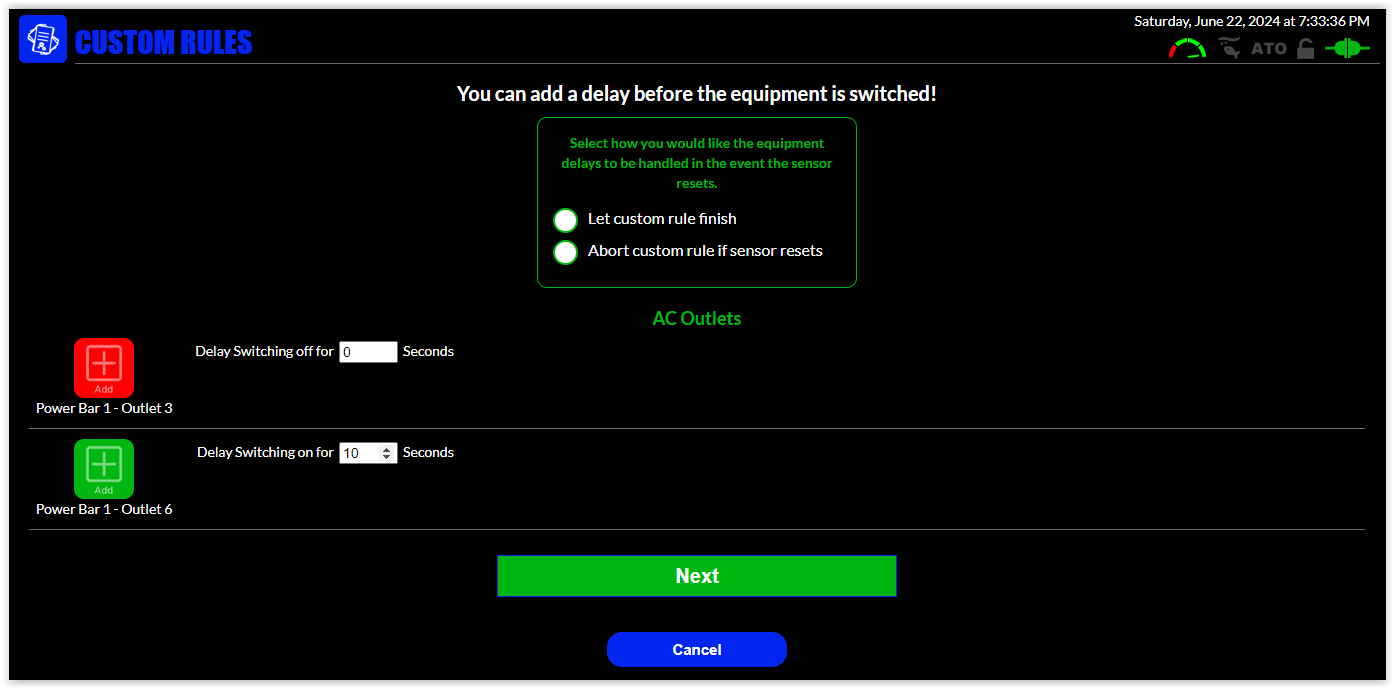

  • Add delay before port switches allowing staggering
  • Option to abort or let custom rule finish if sensor resets
  • Receive email alert if custom rule triggers

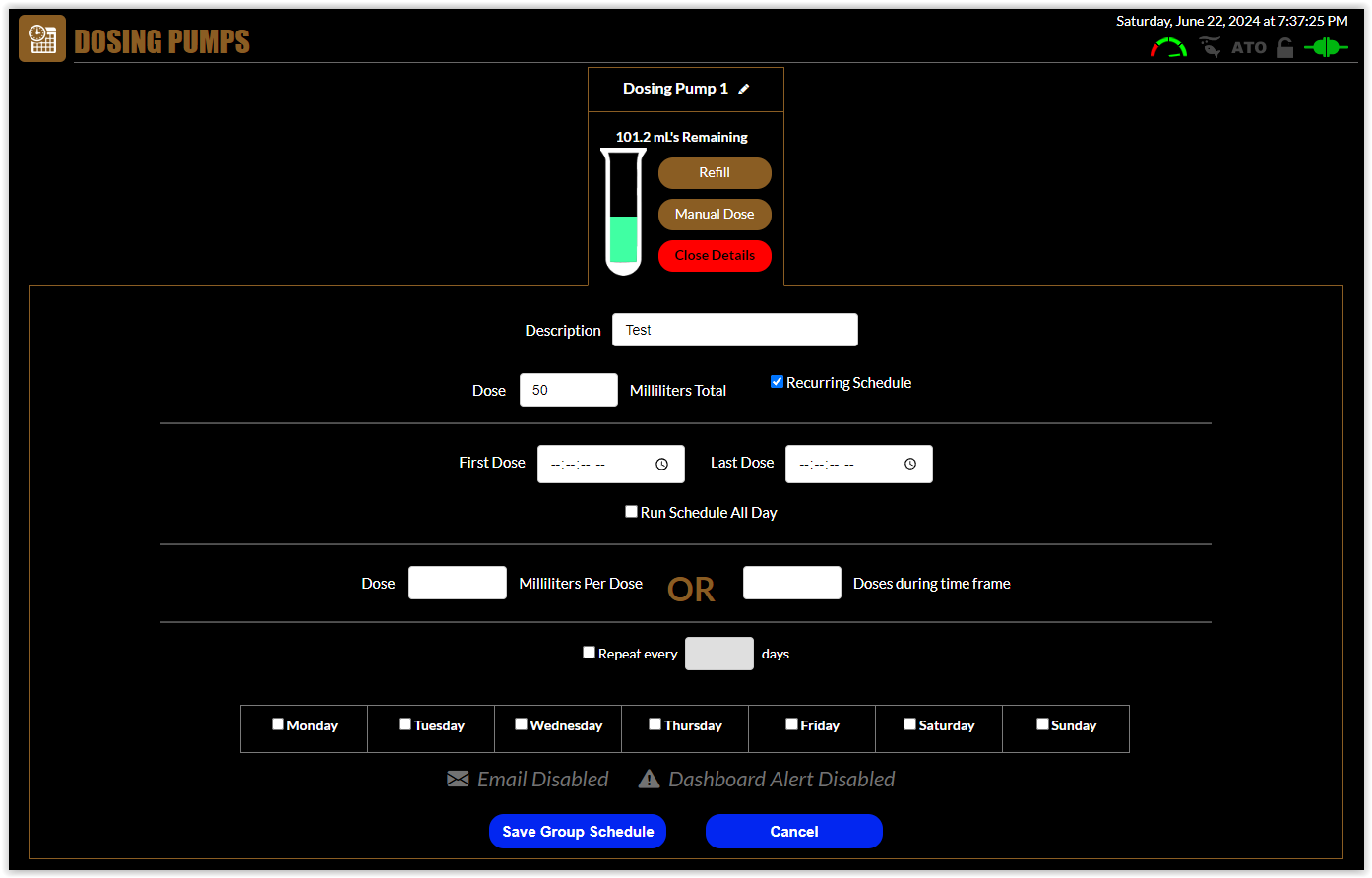

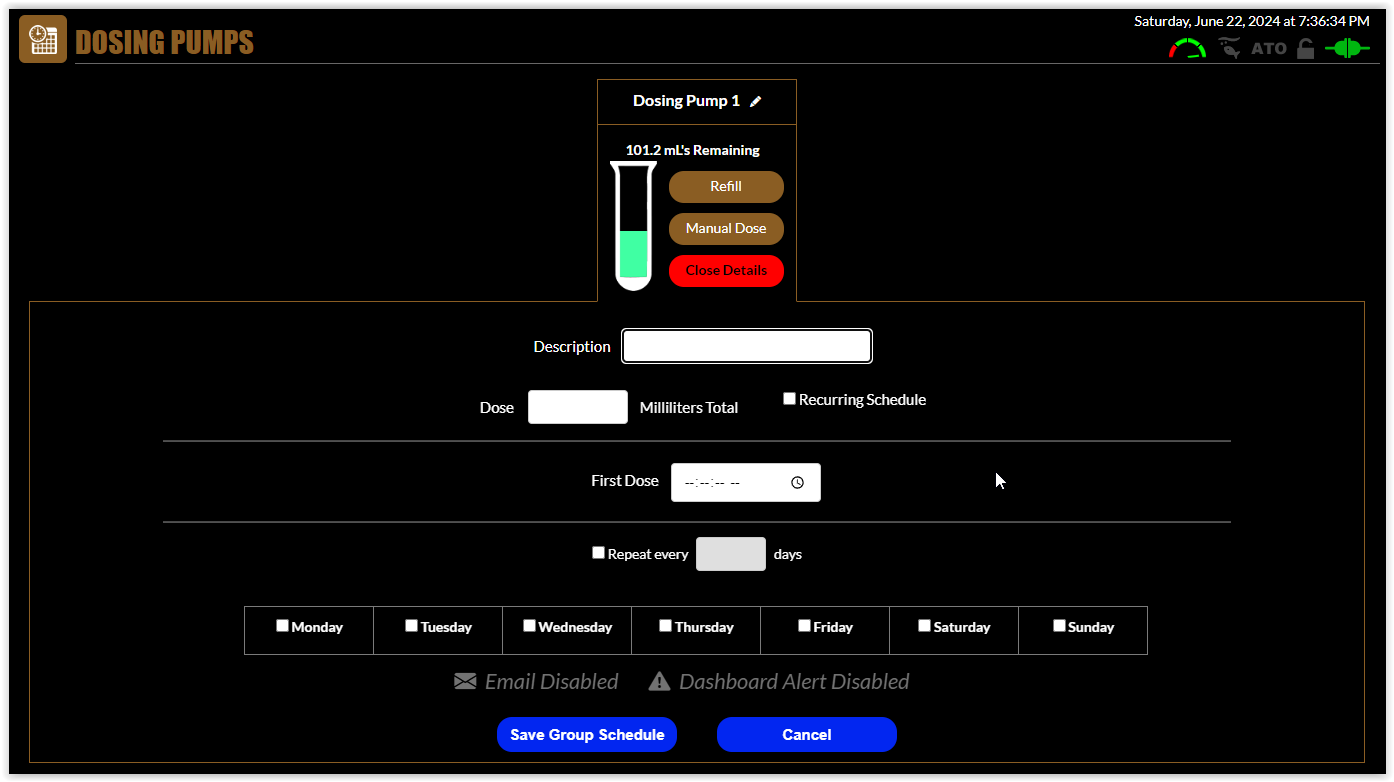

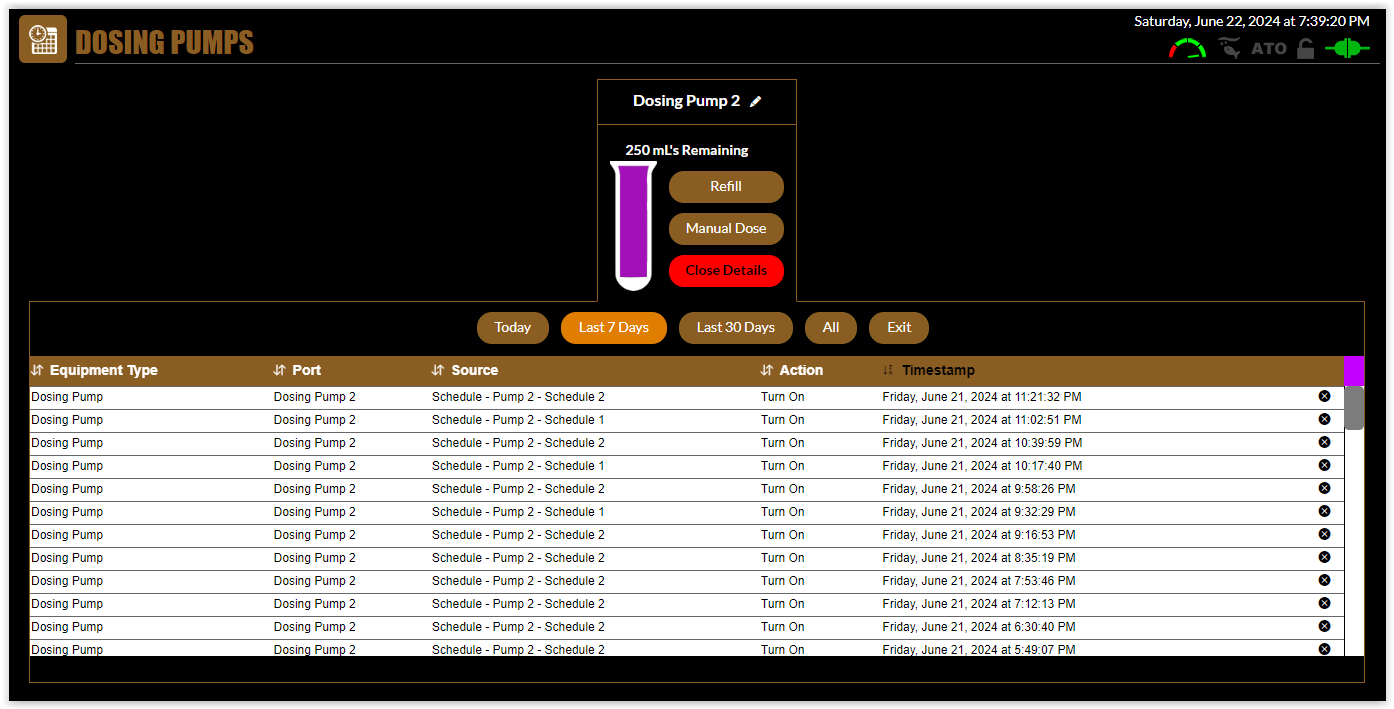

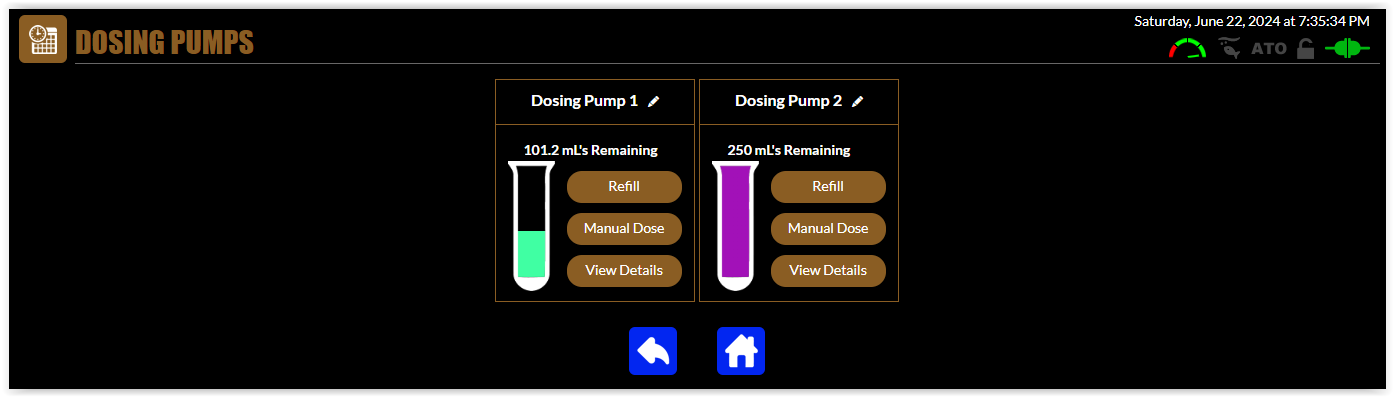

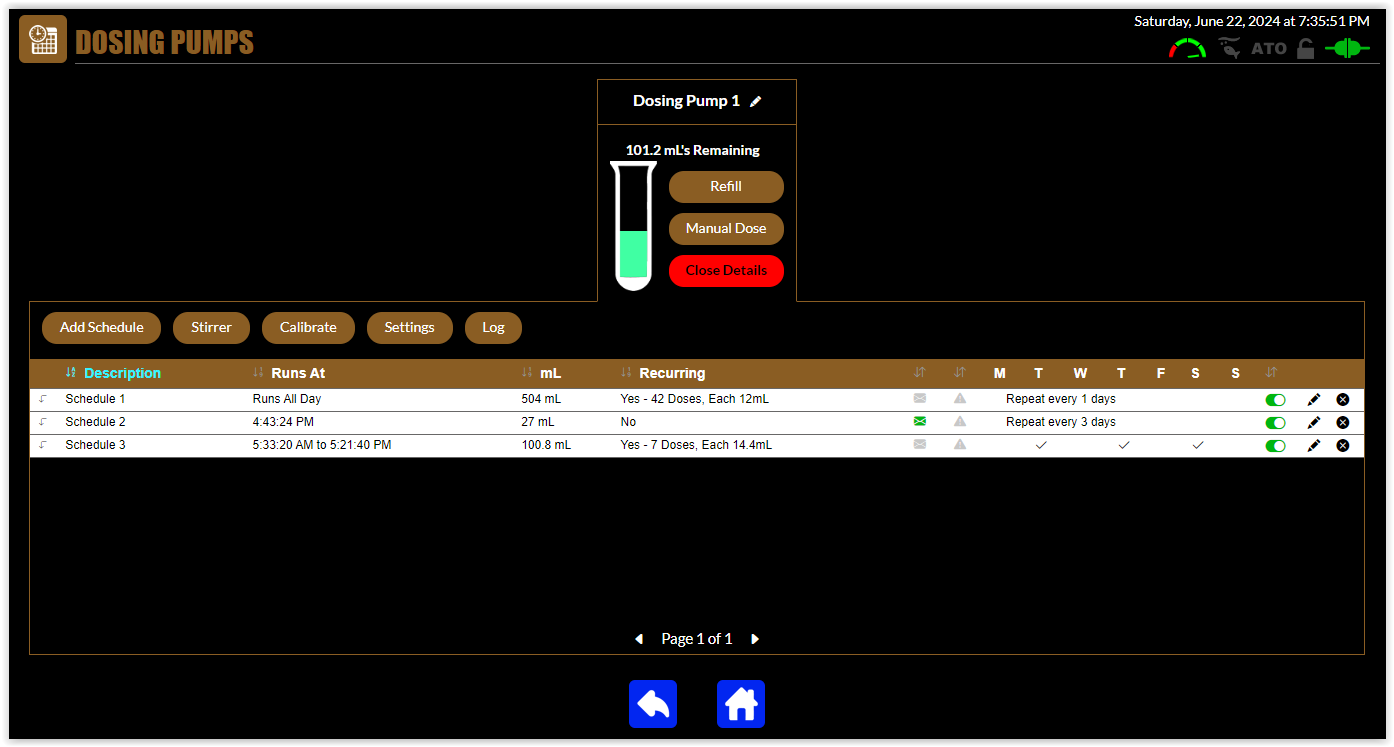

Dosing Pumps

  • Adjustable dosing pump speed

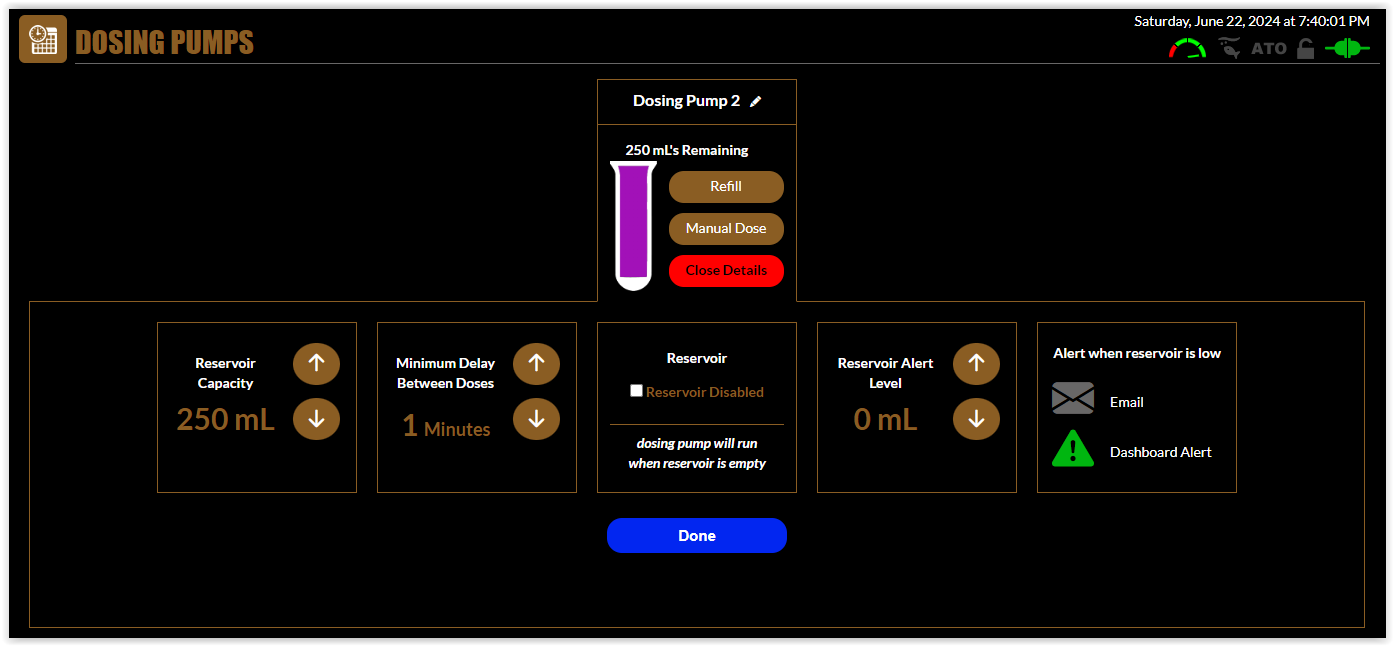

  • Custom reservoir capacity
  • Enable reservoir so pump doesn't run when empty or disable it
  • Alert when reservoir is low
  • Minimum delay between doses setting

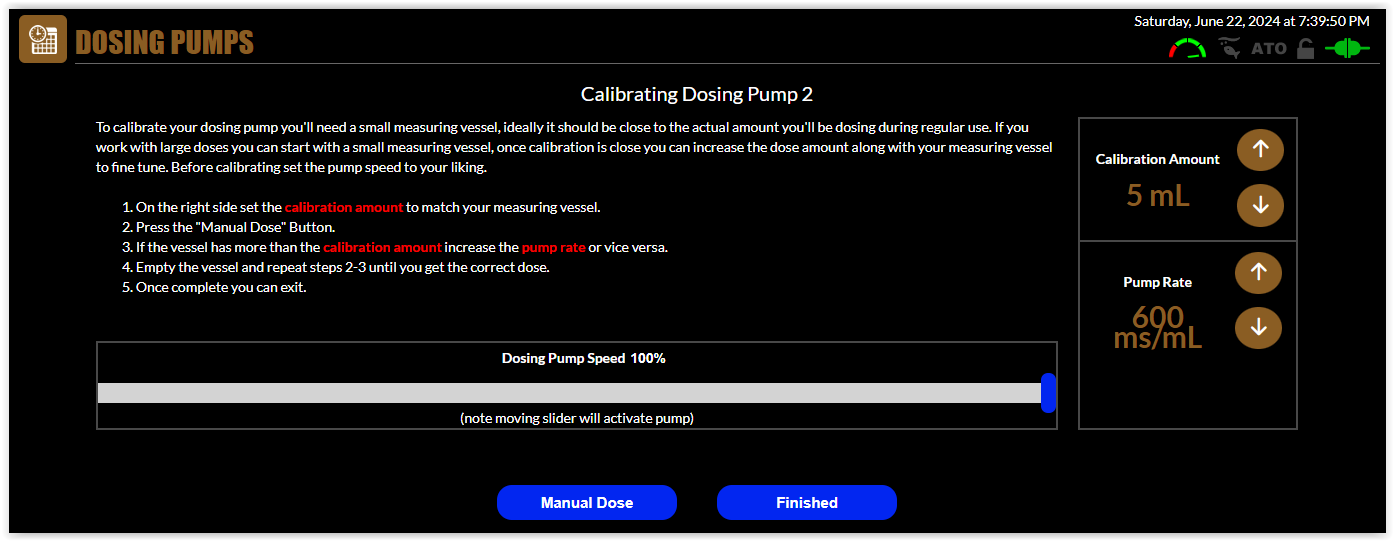

  • Visual calibration process

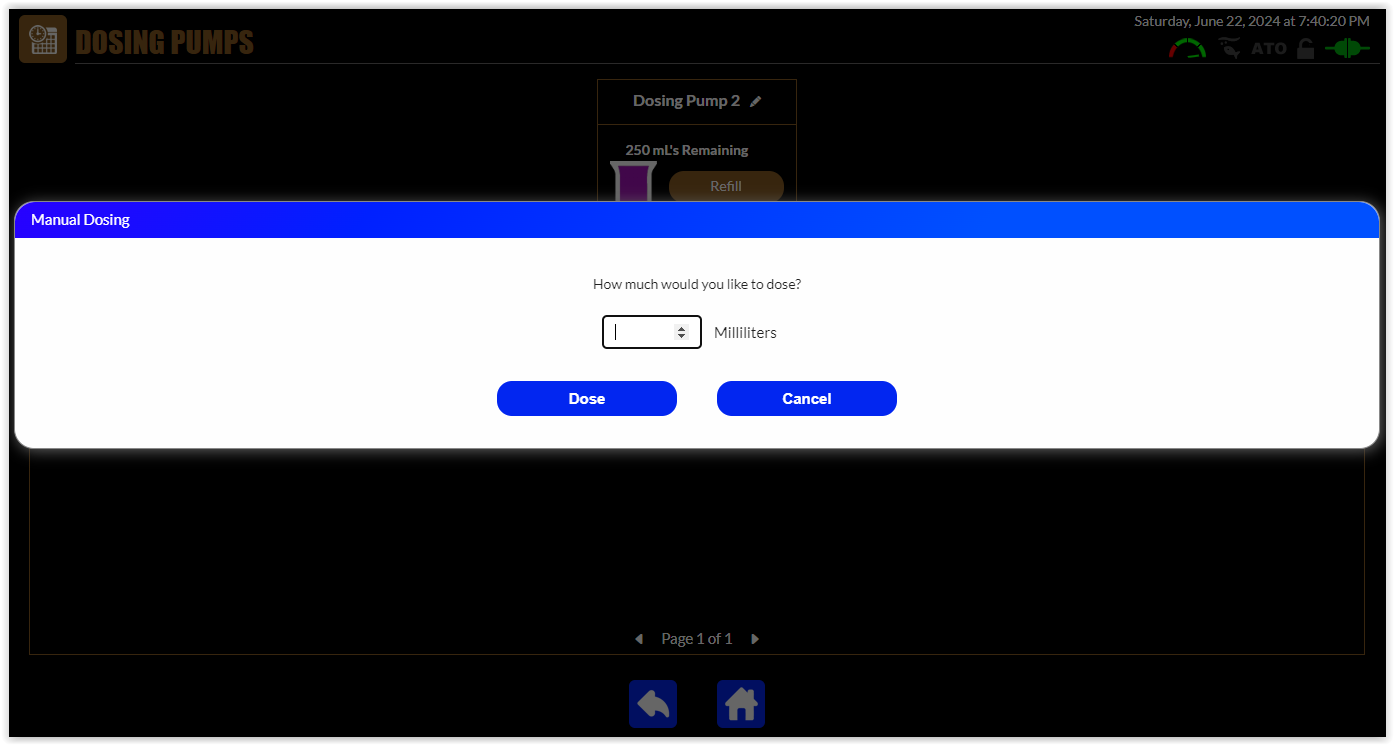

  • Manual dosing
  • Customizable reservoir color
  • Chart shows dose amount and real time in seconds it took to dose
  • Doses are logged
  • Receive select emails when dosing

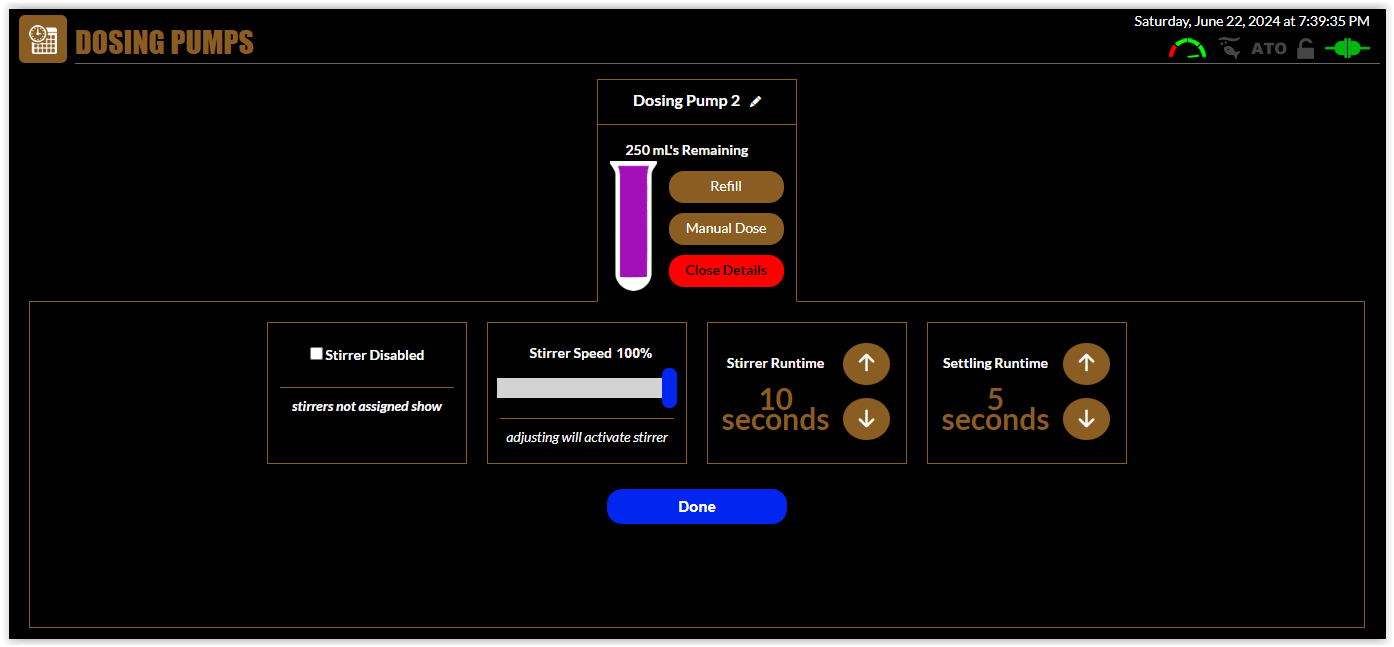

Dosing Pump Stirrers

  • Easy to configure
  • Adjustable stirrer speed
  • Adjust how long it should stir the reservoir
  • Adjust how long it should let reservoir settle before dosing

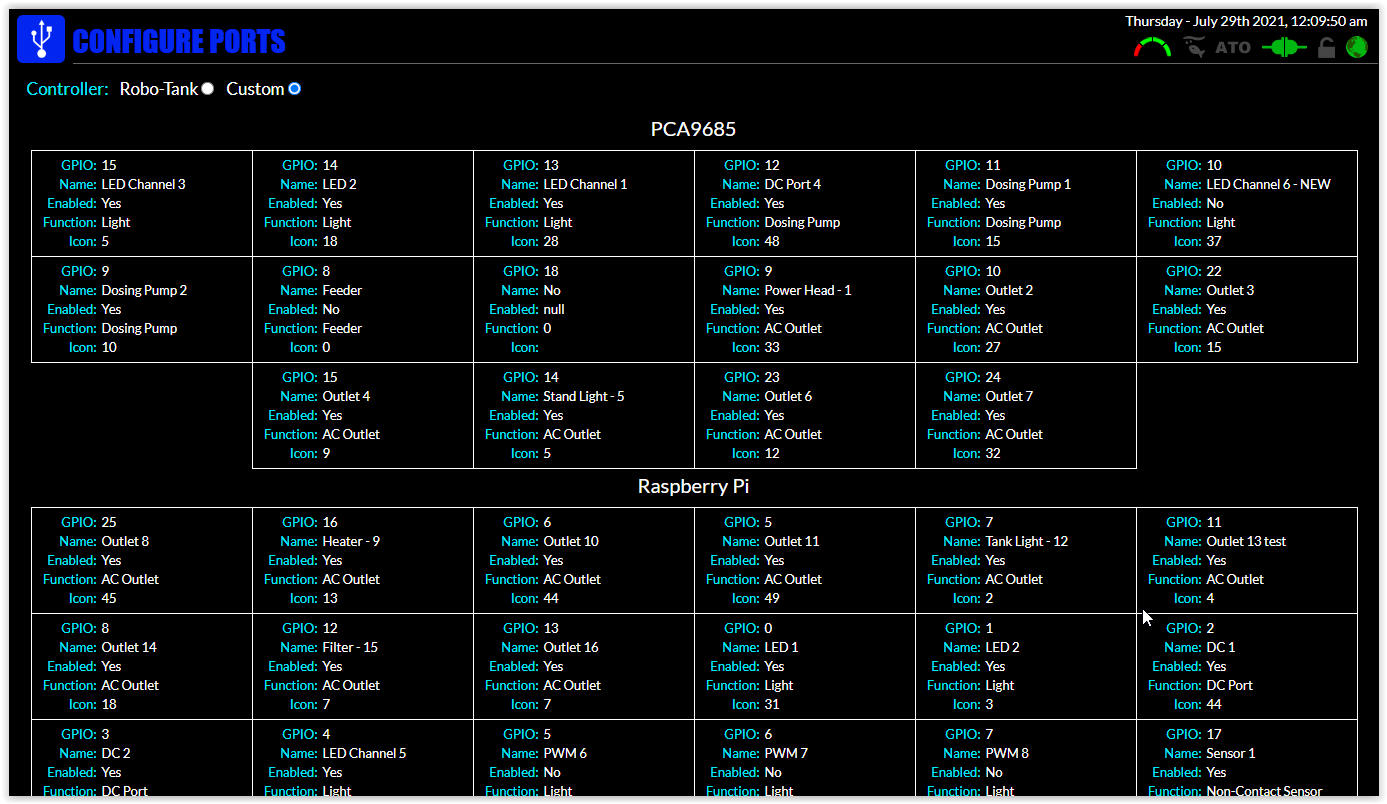

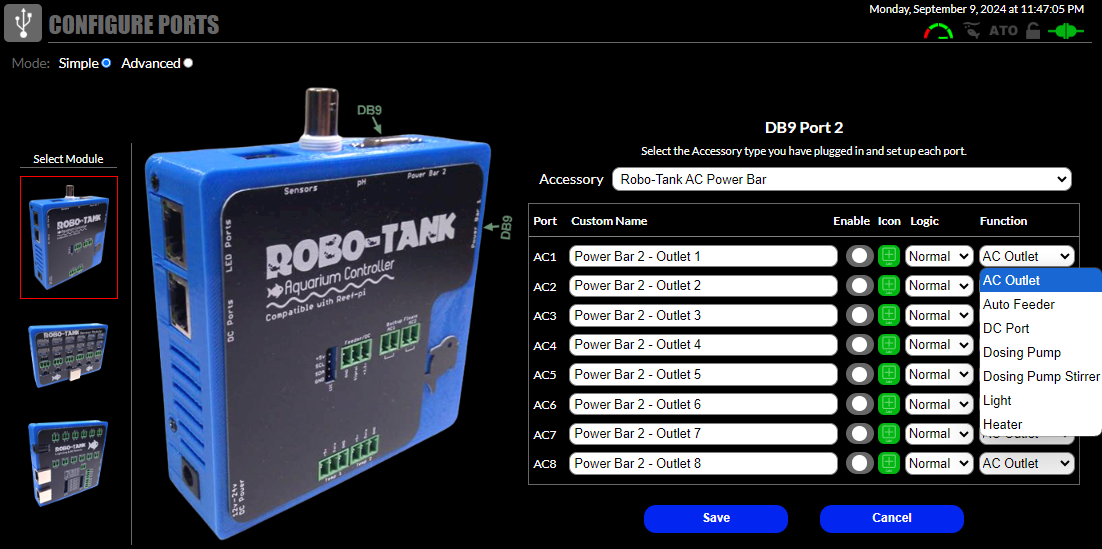

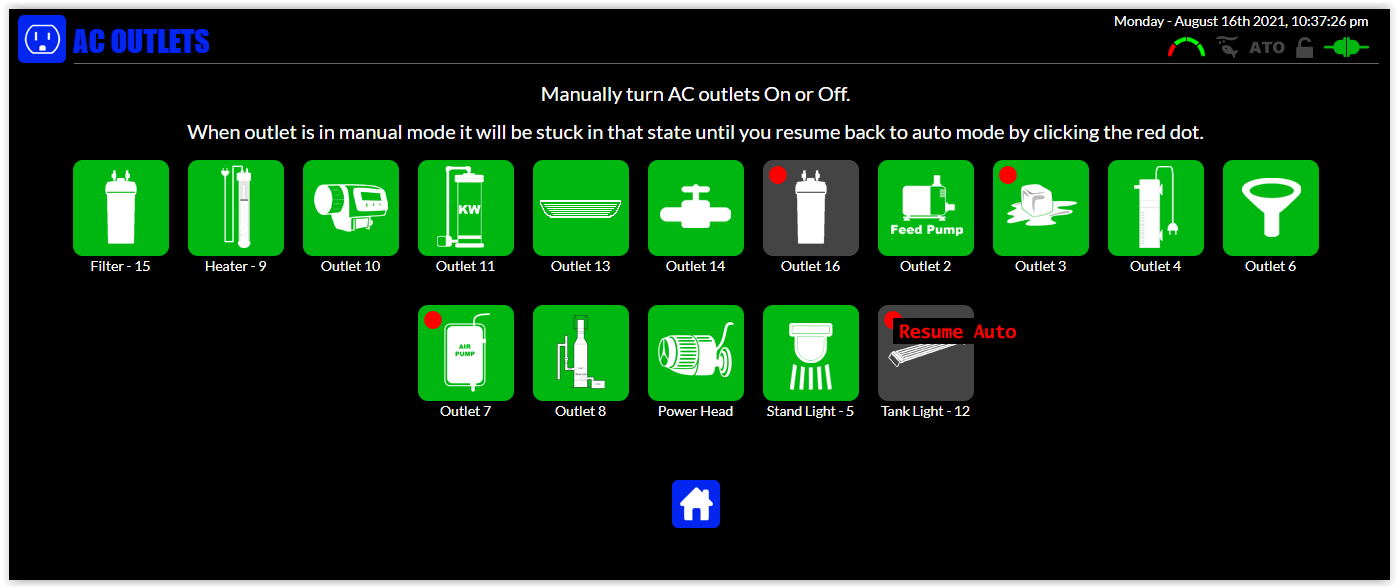

AC Outlets

  • Use as a standard AC outlet with schedules and custom rules
  • In standard mode you can manually control state
  • In standard mode you can lock outlet in a state, nothing will switch it
  • Configure as a dosing pump, dosing pump stirrer, light or heater

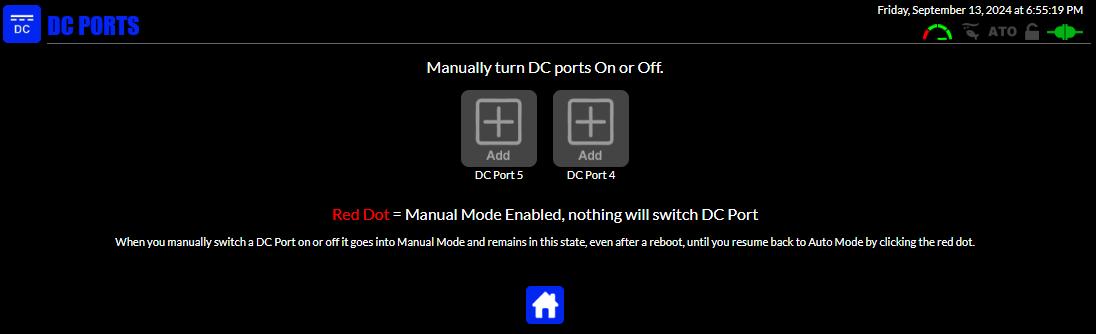

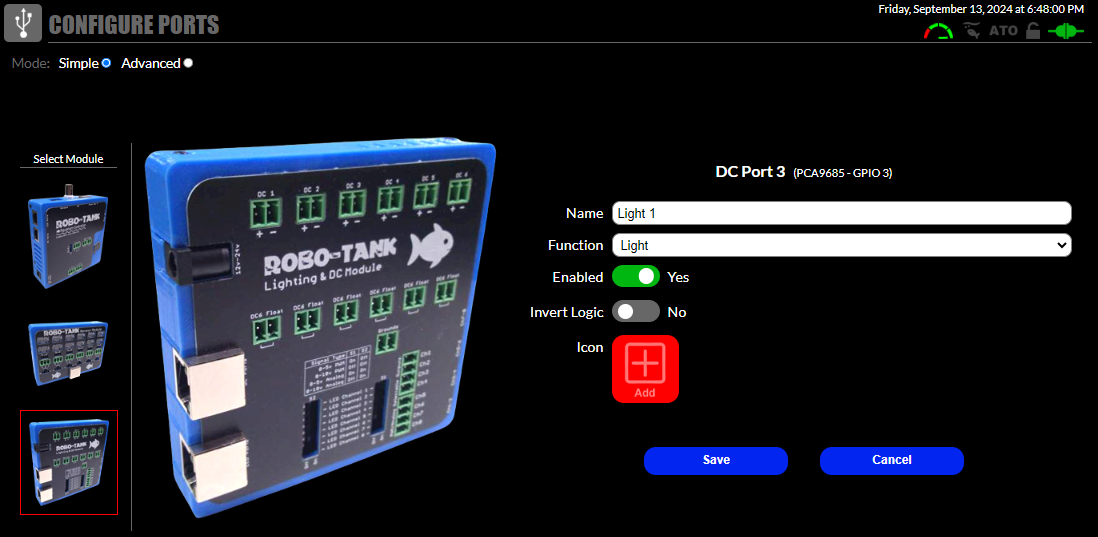

DC Ports

  • Use as a standard DC Ports with schedules and custom rules
  • In standard mode you can manually control state
  • In standard mode you can lock DC port in a state, nothing will switch it
  • Configure as a dosing pump, dosing pump stirrer, light or heater

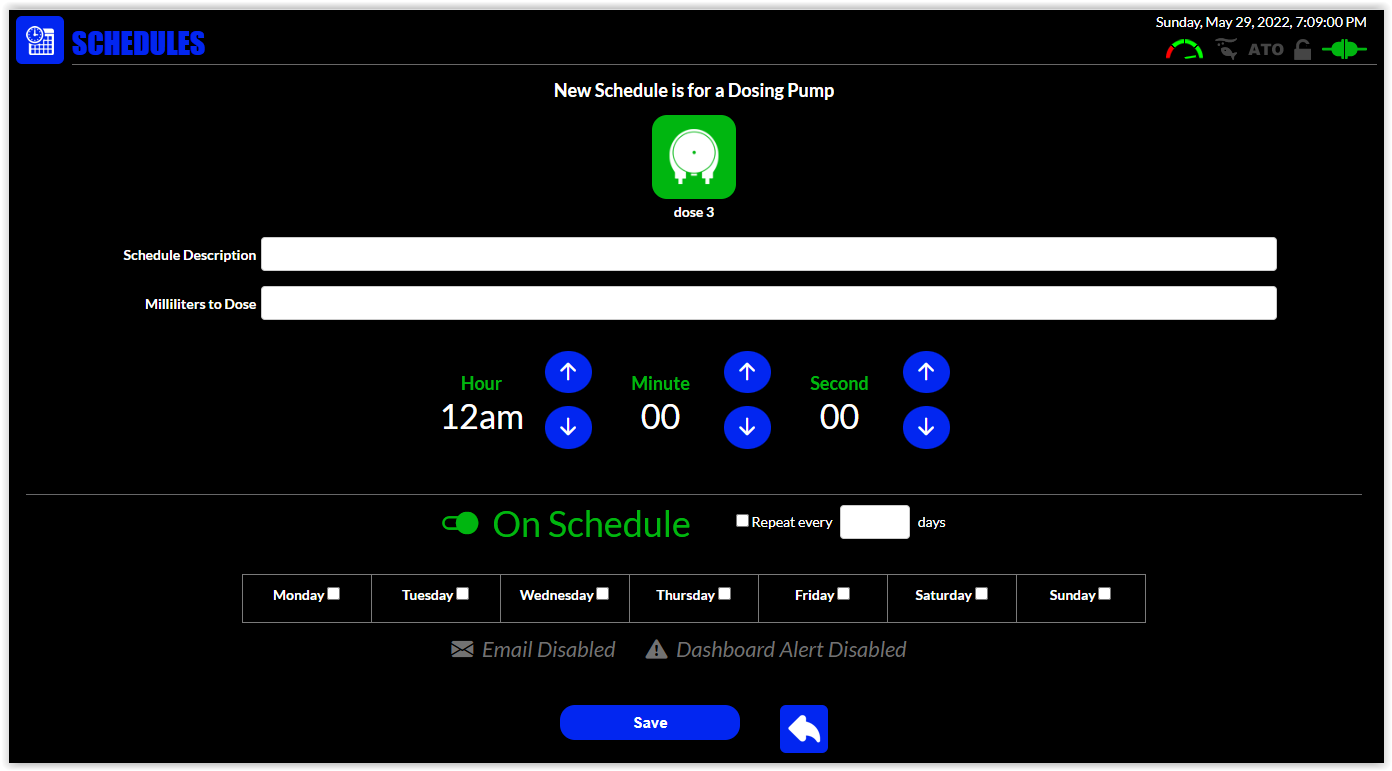

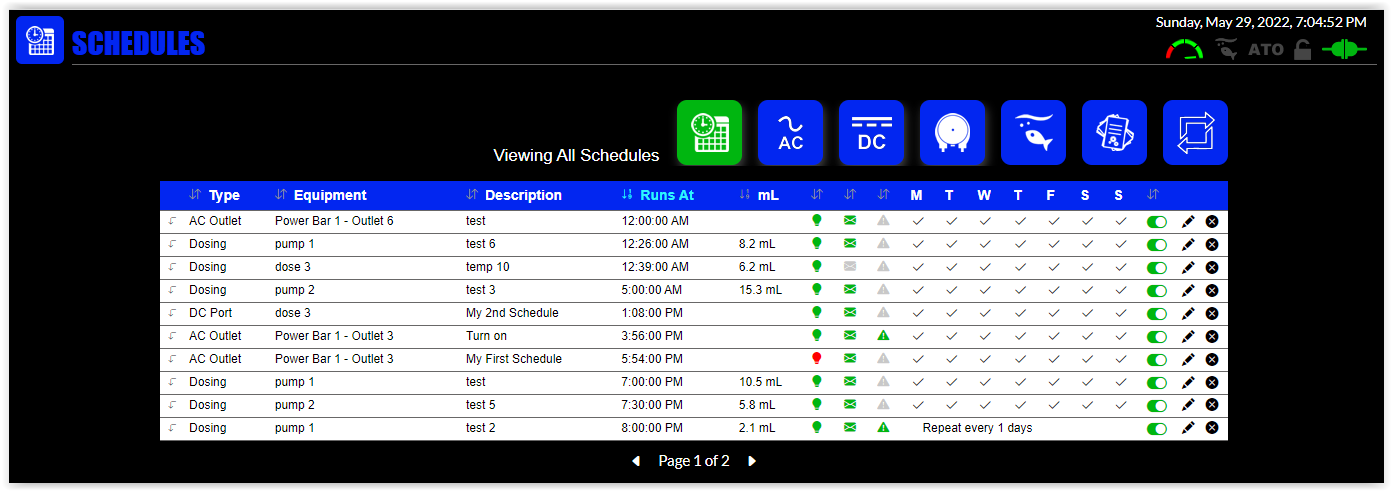

Full Scheduling

  • Schedule AC outlets, DC ports, lights and dosing pumps
  • Select day or days of week to run schedule
  • Select every X number of days to run schedule
  • Group schedules for doing pumps
  • Email alerts

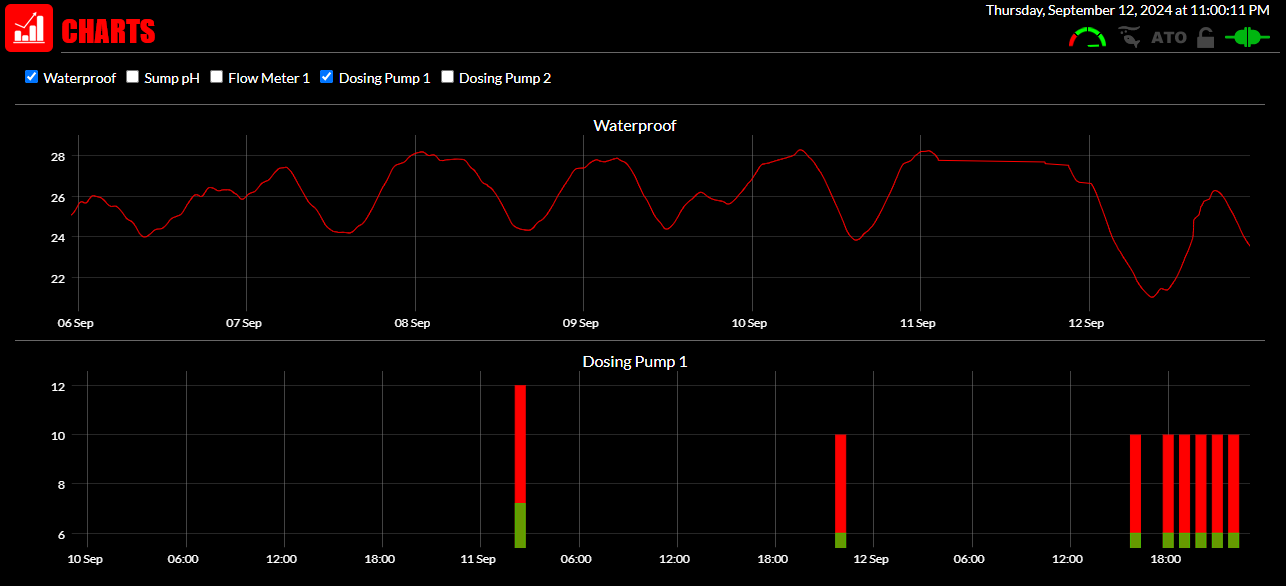

Advanced Charting

  • Custom rolling average to smooth chart
  • View chart as 1, 6 or 24 hour or 3, 7, 14, 30 or 90 day
  • Scroll through all data
  • Multiple parameters if applicable
  • Show or hide chart from dashboard

Advanced Logs

  • Logs equipment type, port, log source, action and timestamp
  • Sort by any column
  • Filter log by equipment type, port, source and action
  • Select start and end date
  • Clear log

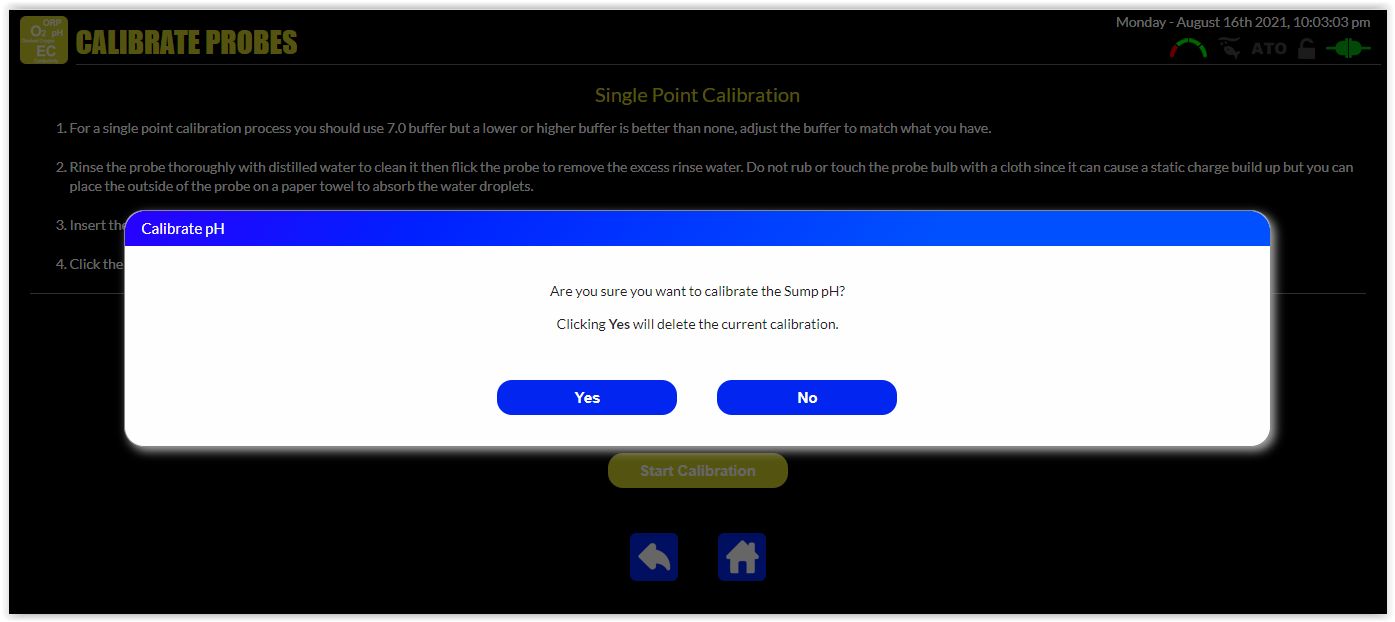

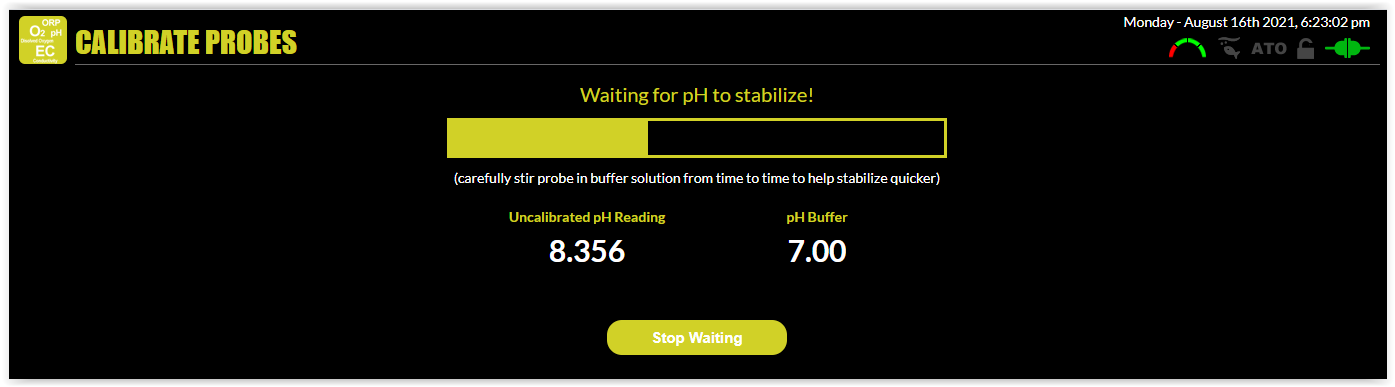

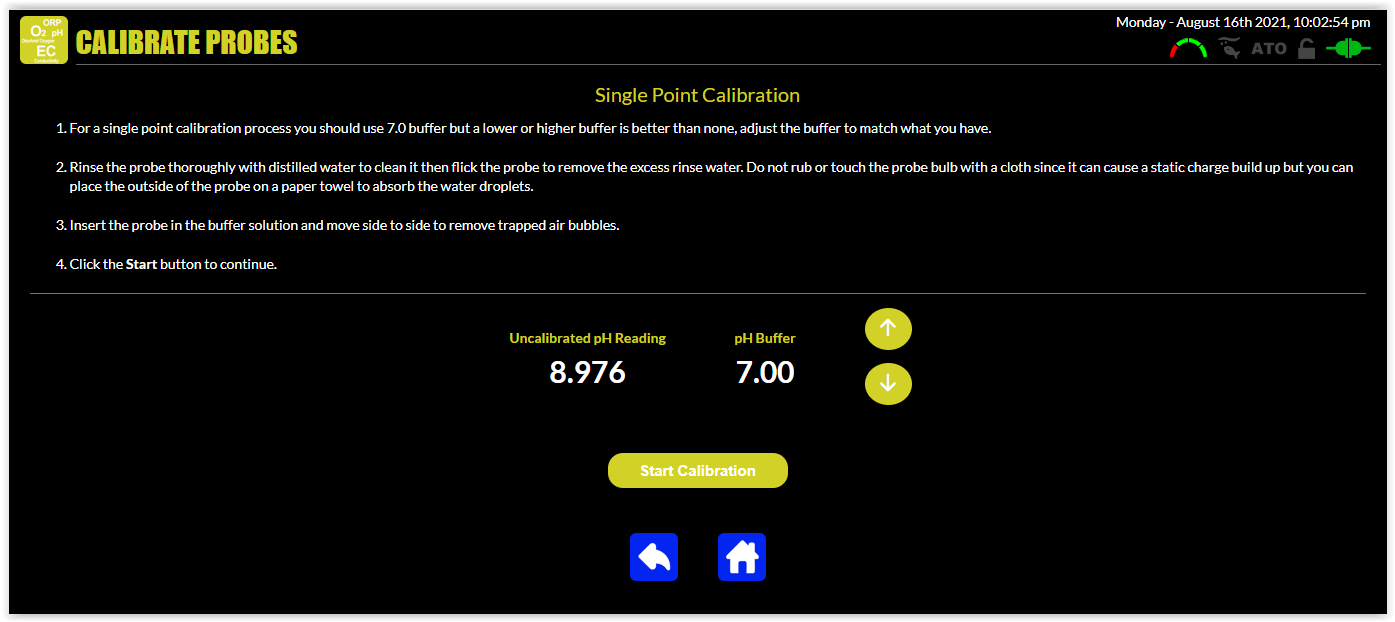

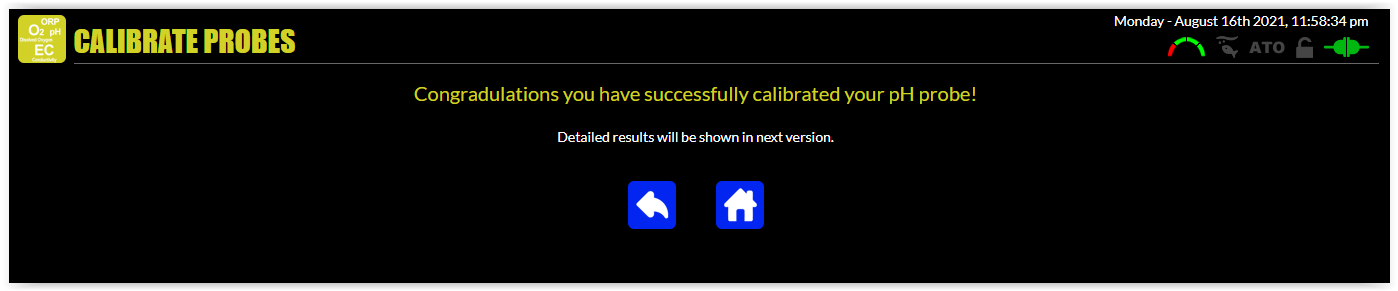

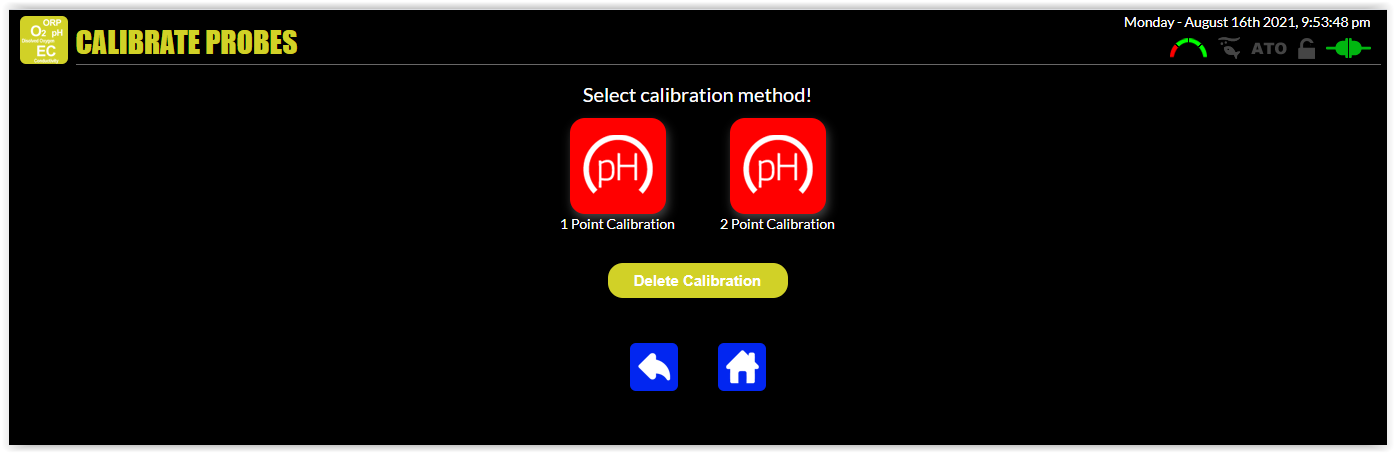

Monitor pH and Control

  • View pH in thousands, 7.000
  • Tracks resettable minimum and maximum reading
  • Control equipment based on readings with optional 2nd sensor
  • Chart pH reading

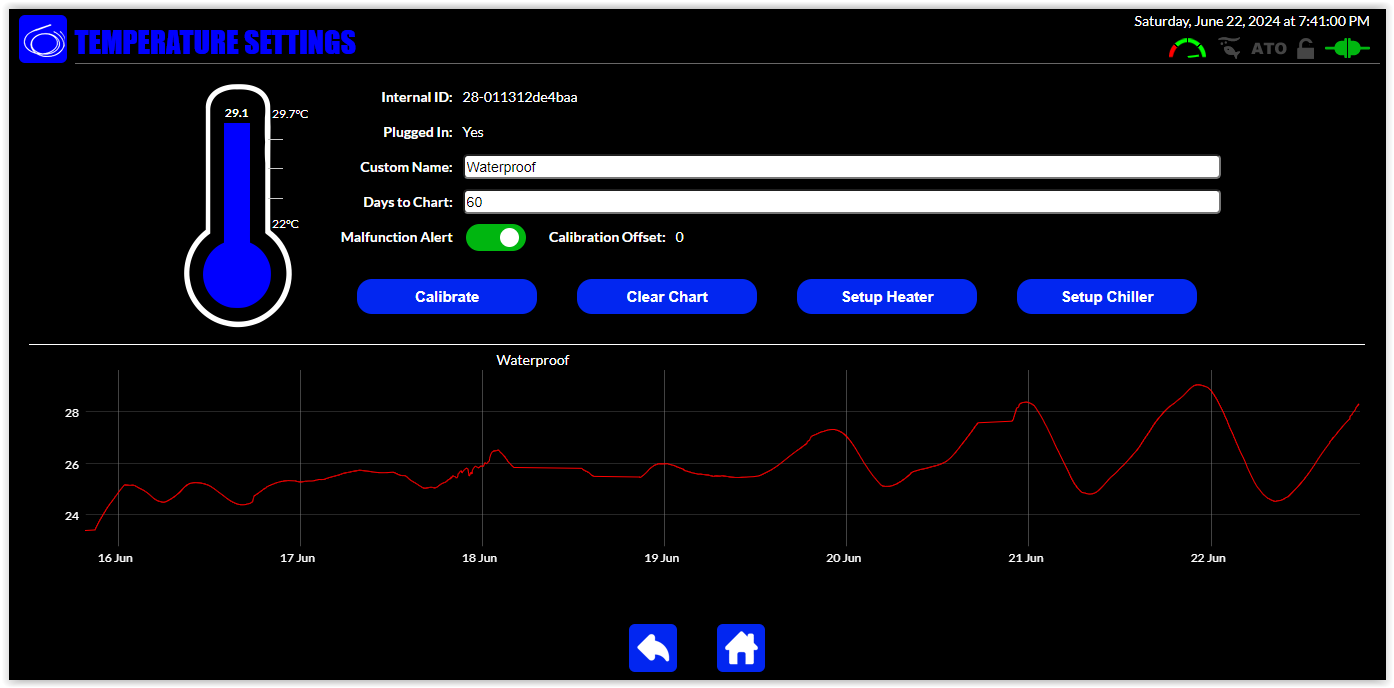

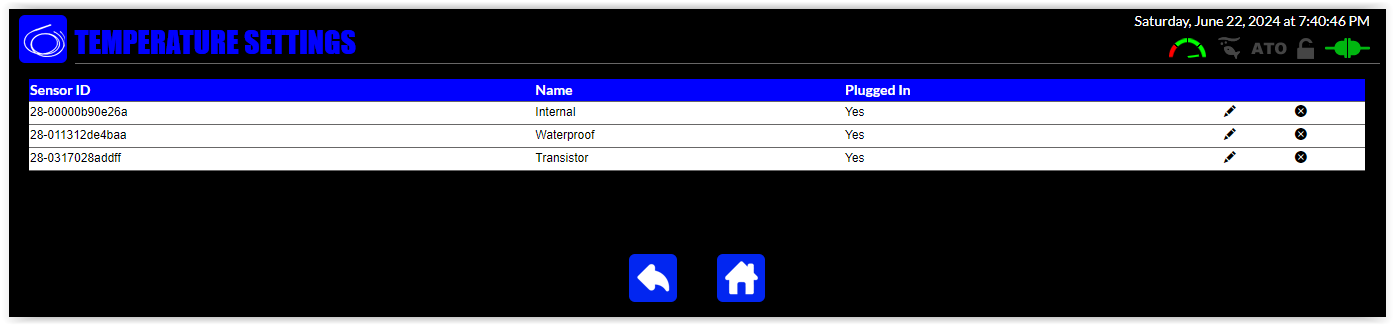

Monitor Temperature and Control

  • Auto DS18B20 sensor detection
  • Alerts if sensor loses connection
  • View Celsius or Fahrenheit
  • Tracks resettable minimum and maximum reading
  • Control equipment based on reading with optional 2nd sensor
  • Charts

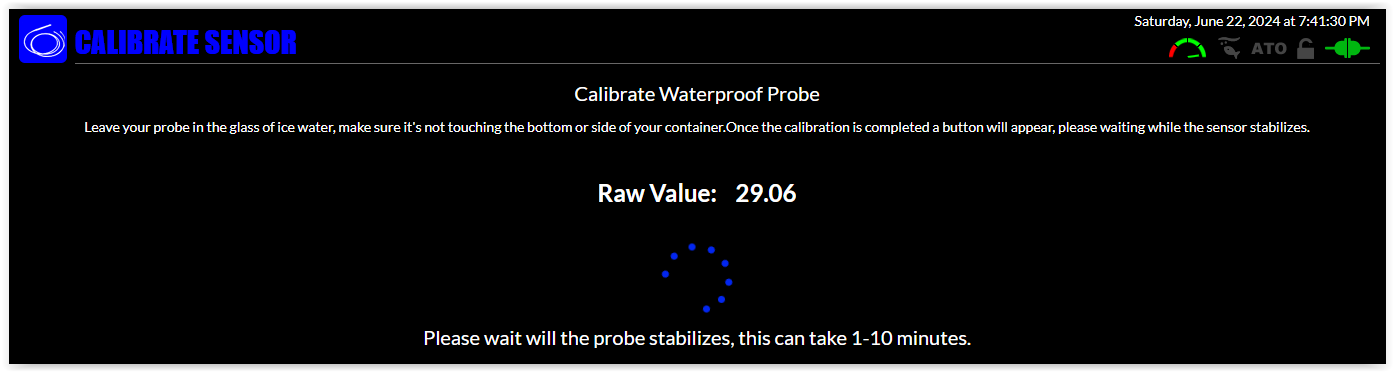

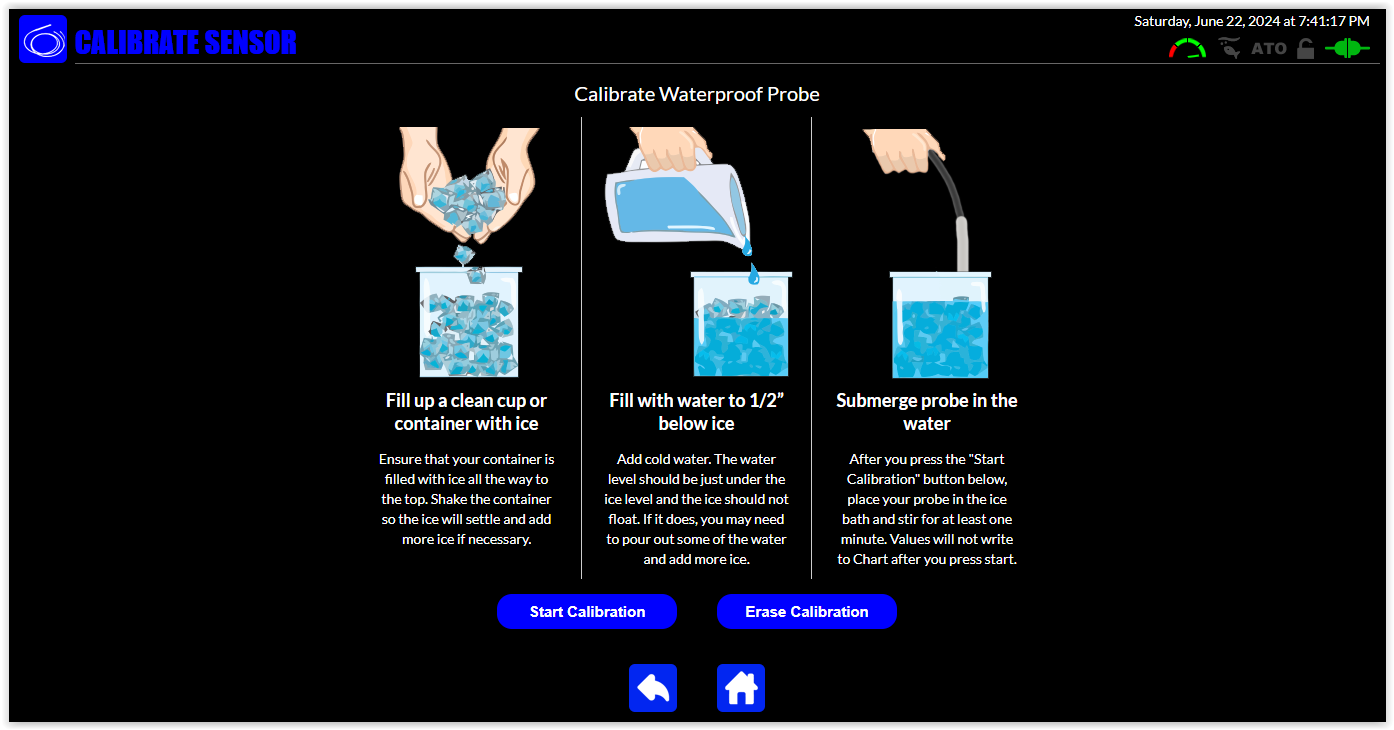

  • Visual calibration process

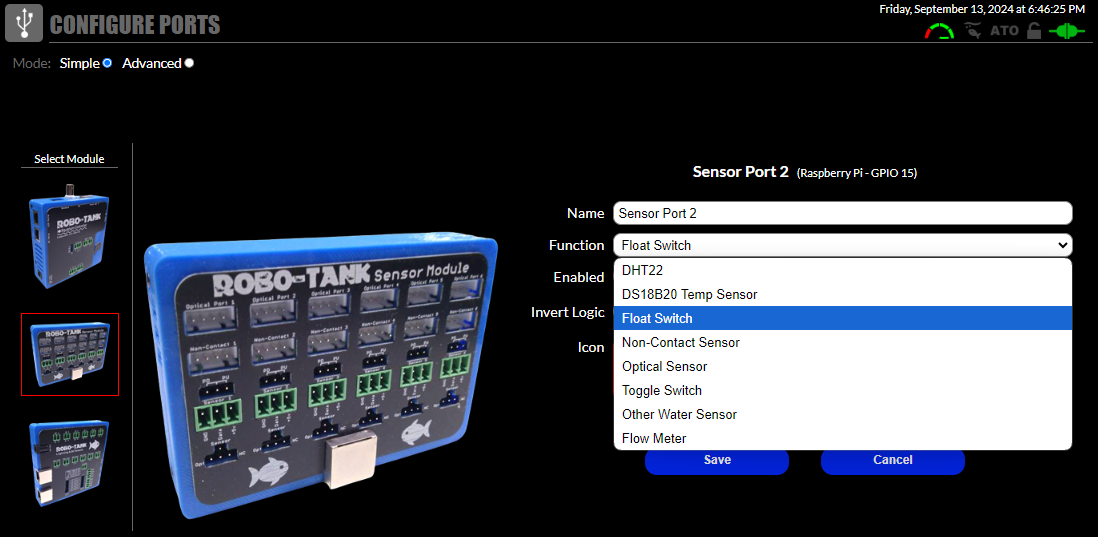

Monitor Water Levels

  • Compatible with optical sensors, non-contact sensors, float switches, toggle switches and water detection boards
  • Invert logic
  • Use combination of sensors in custom rules to control equipment
  • Matching icons on dashboard update based on water level

Monitor Humidity and Control

  • DHT22 sensor outputs humidity and temperature
  • View Celsius or Fahrenheit
  • Tracks resettable minimum and maximum reading
  • Control equipment based on readings with optional 2nd sensor
  • Charts humidity and temperature on same chart

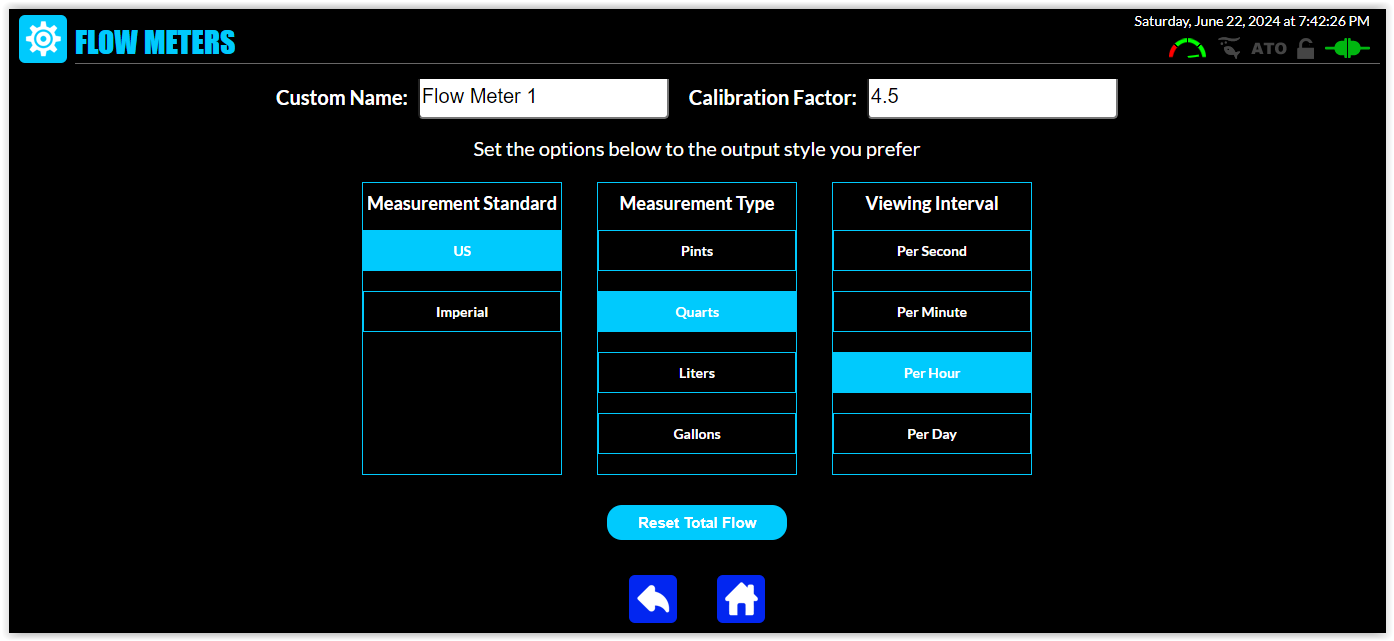

Flow Meters

  • View output in US or Imperial format
  • View output as pints, quarts, liters or gallons
  • View output as per second, per minute, per hour or per day
  • Charts the flow rate
  • Basic calibration

Monitor Conductivity and Control

  • Coming soon...

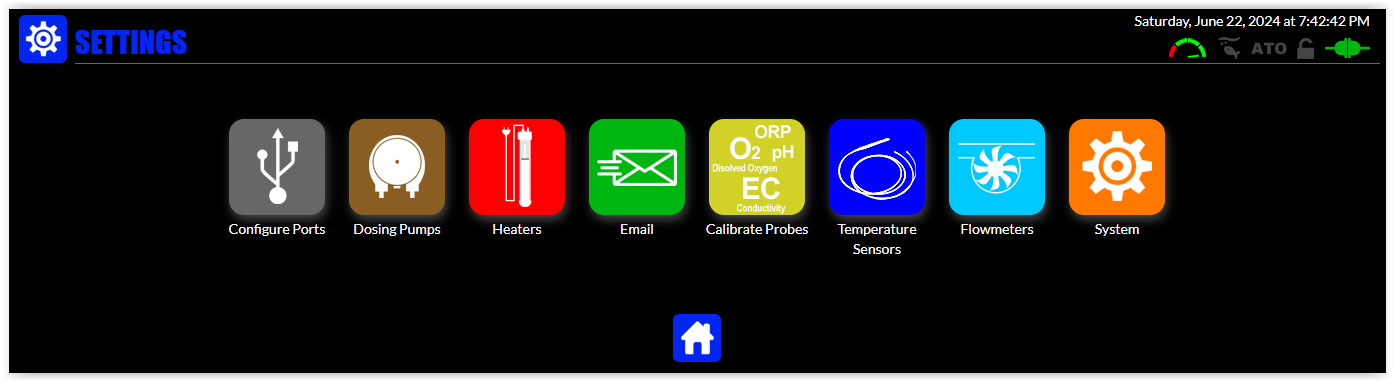

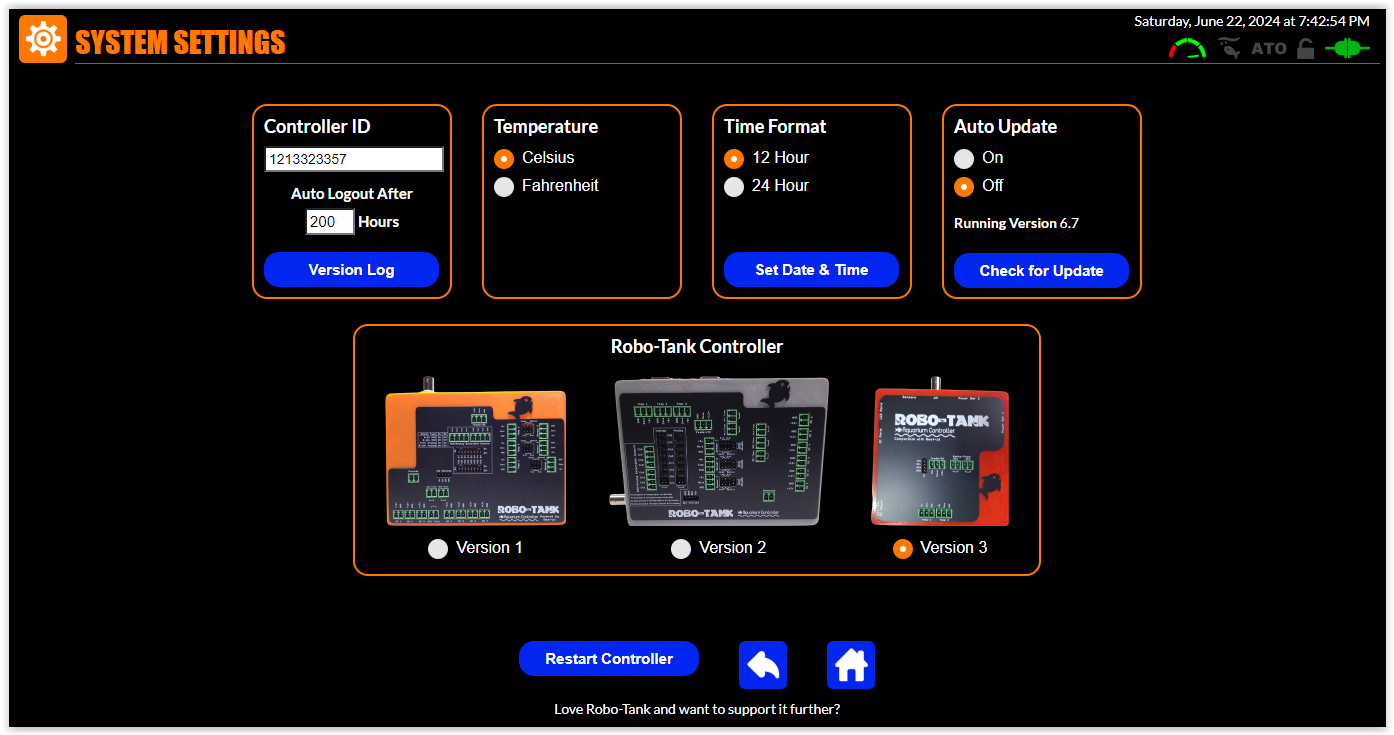

System Settings

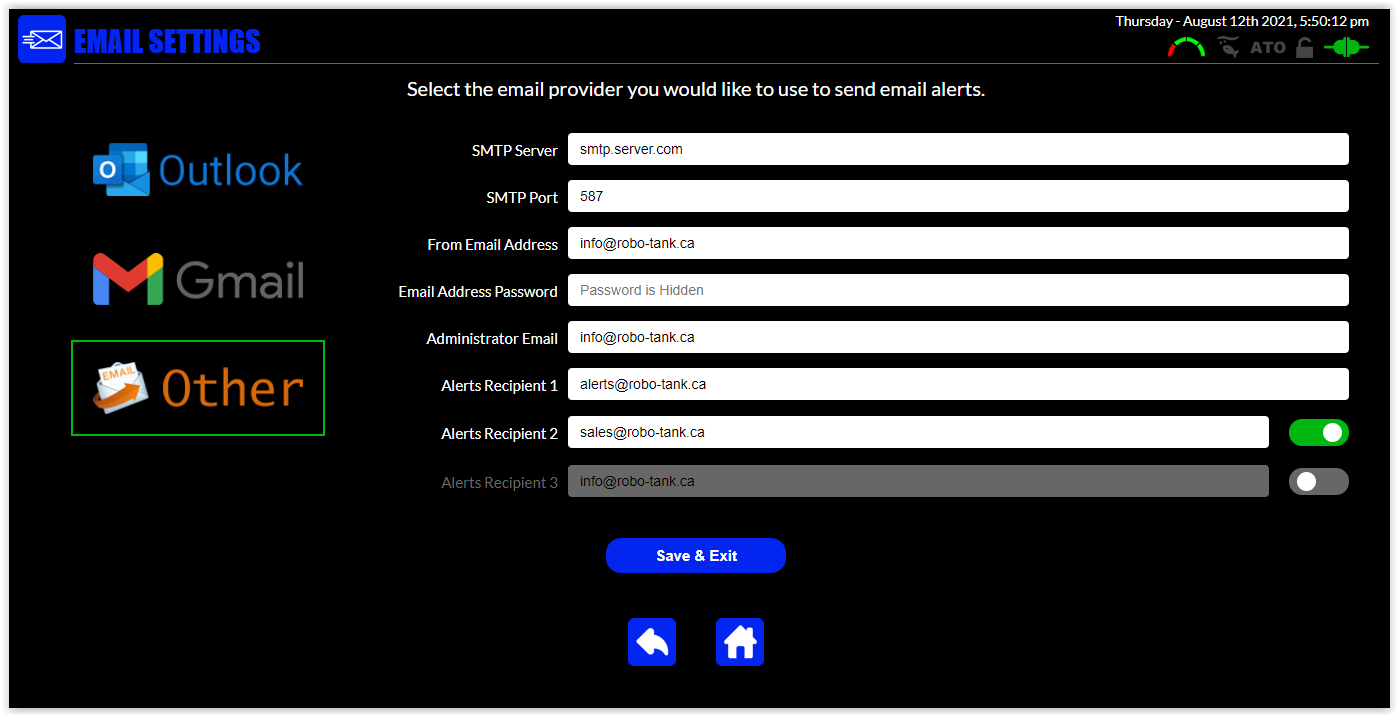

  • Send emails using a SMTP mail server
  • Enable or disable emails
  • Set how long until dashboard automatically logs out
  • 12 or 24 hour time format
  • System health meter
  • Backend connection status icon

Auto Update

  • Update through the interface
  • Check for updates manually
  • Get notified when update is available
